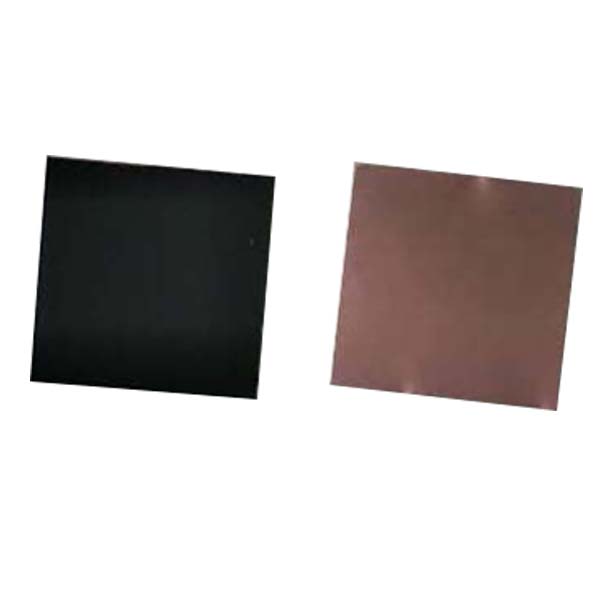

product name: DBC Sappire ceramic,99.99% al2o3 ceramic substrate, ceramic PCB, TiWCu ceramic metallization

material: Al203:99.99% | MgO:0.005% | TiO:0.003% | Other.0.002%
process: hydrothermal exchange method
crystal orientation:C
thermal conductivity:53 W/m.k
dielectric constant:13.2TC
thermal expansion coefficient:6.2*10-6/C
density:4.15 g/cm3light transmittance:>65%
pressureless sintering temperature:1880 deg c
hardness:>9
compressure strength:>350 Mpa
volume resistance:>1014
dielectric breakdown strength:25Kv/mm flatness:<5um
thickness:0.11mm
metallzation material: TiWCu
Ti layer thickness:12um
Wlayer thickness:13um

Cu layer thickness:3.5um
