piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece

Product description:
INQUIRY

model no.: YCB-W-119

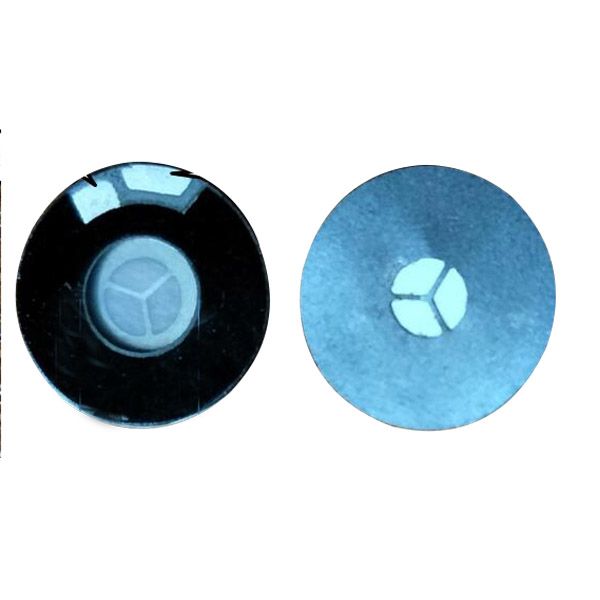

product description: piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece
specifications:
voltage:3-12v DC
static capacitance:2300pF+/-20%
resonance frequency:108kHz
resonant impedance:<130 ohm
outlet aperture:0.22 um
pore mesh:3900
micro pore area:6.0mm
atomization rate:>135mL/h
material:
PZT-4F
Kt=0.46
eT33=2500
Qm=200
Kp=0.65%
D33=680×10-12C/N
t1=0.05mm
t2=0.58mm
