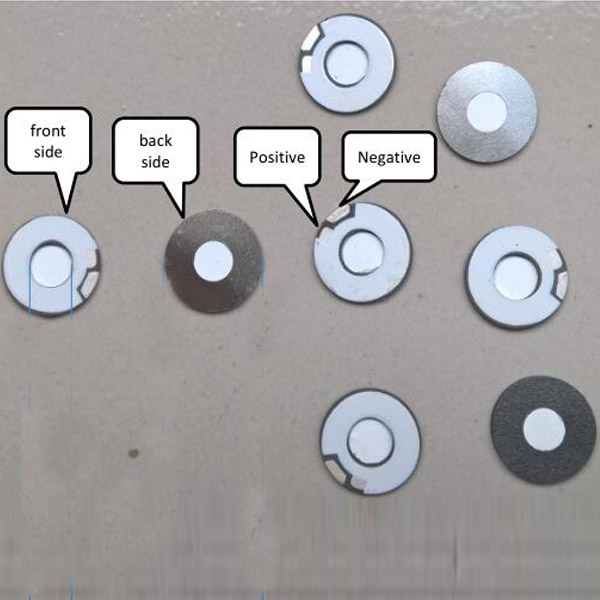

  • piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece
piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece

piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece

model no.: YCB-W-140
product description: piezoelectric ceramic atomization, medical piezoelectric ceramic piece, 0.22um microporous atomization piece
specifications:
voltage:3-12v DC
static capacitance:2300pF +/-20%
resonance frequency:108kHz
resonant impedance:<130 ohm
outlet aperture:0.22 um
pore mesh:3900
micro pore area:6.0mm

atomization rate:>135 mL/h

material:
PZT-4F
Kt=0.46
eT33=2500
Qm=200
Kp=0.65%
D33=680×10-12C/N
t1=0.05mm
t2=0.58mm

PREVIOUS：piezoelectric ceramic atomization, medical pi NEXT：piezoelectric ceramic atomization, medical pi

RELATED PRODUCTS

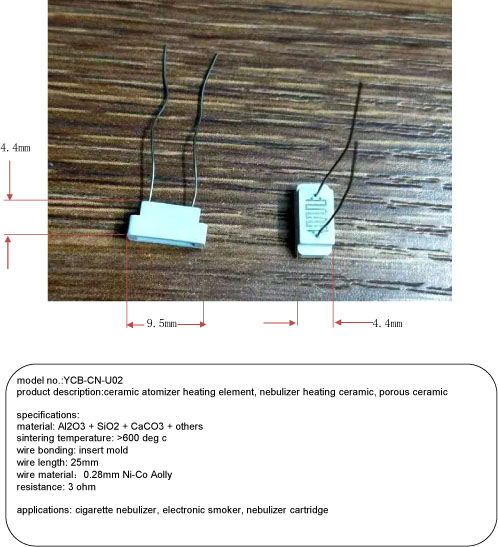

ceramic atomizer heating element, nebulizer heating ceramic, porous ceramic
