Piezoelectric ceramic series

piezoelectric ceramic atomization, medical piezoelectric ceramic piece,1.5um microporous atomization piece

Product description:
INQUIRY

model no.: YCB-W-139

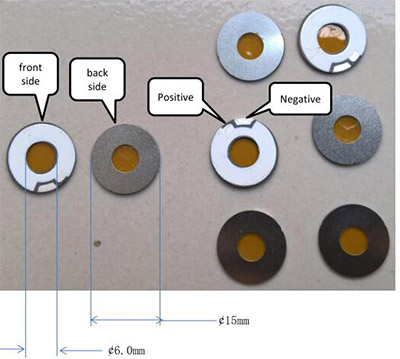

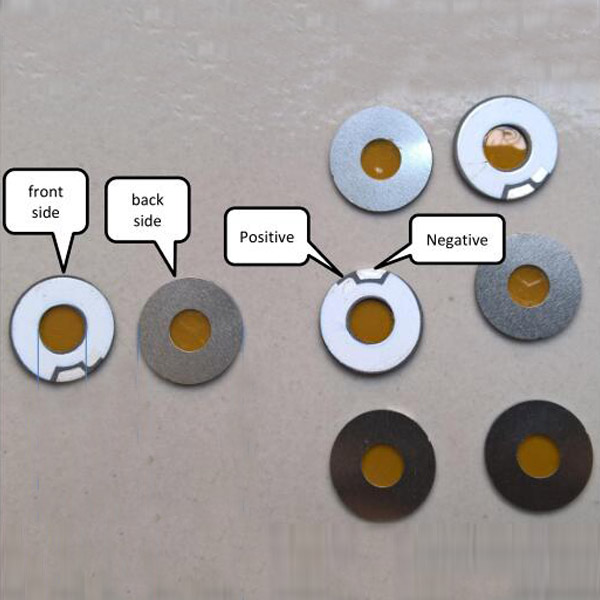

product description: piezoelectric ceramic atomization, medical piezoelectric ceramic piece,1.5um microporous atomization piece
specifications:
voltage:3-12vDC
static capacitance:2300pF +/-20%
resonance frequency:108kHz
resonant impedance:<130 ohm
outlet aperture:1.5um
pore mesh:2600
micro pore area:4.5mm
atomization rate:>120 mL/h

material:
PZT-4F
Kt=0.46
eT33=2500
Qm=200
Kp=0.65%
D33=680×10-12C/N
t1=0.05mm
t2=0.58mm
