Model No.:YCB-CC-Y10

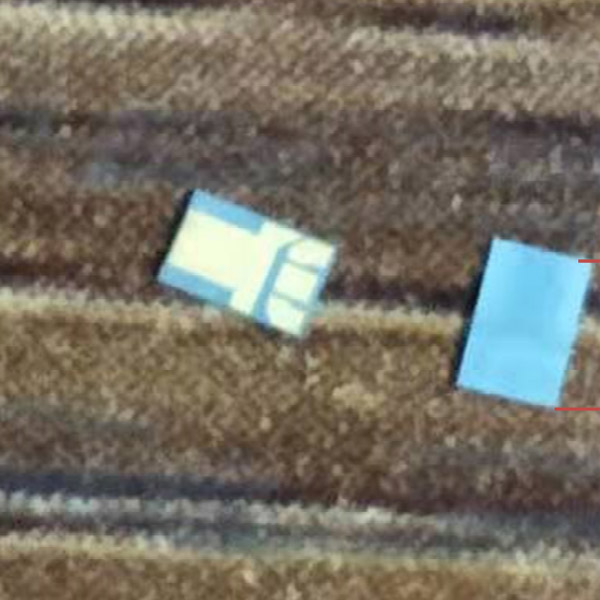

product name:AIN Ceramic circuit PCB
material:Al:61.48%  N:35.55% C:1.02%  Other:1.95%
thermal conductivity:190 W/m.k
dielectric constant:9.1 at 1Mhz
expansion coefficient:4.6*10-6/C
volume resistance:>1014
dielectric breakdown strength:25 Kv/mm
metallization material:TiPtAu
Tracking space/width:0.08mm/0.08mm
substrate thickness:0.25mm
Cu thickness:168um
surface:PdAu solder
mask:green
