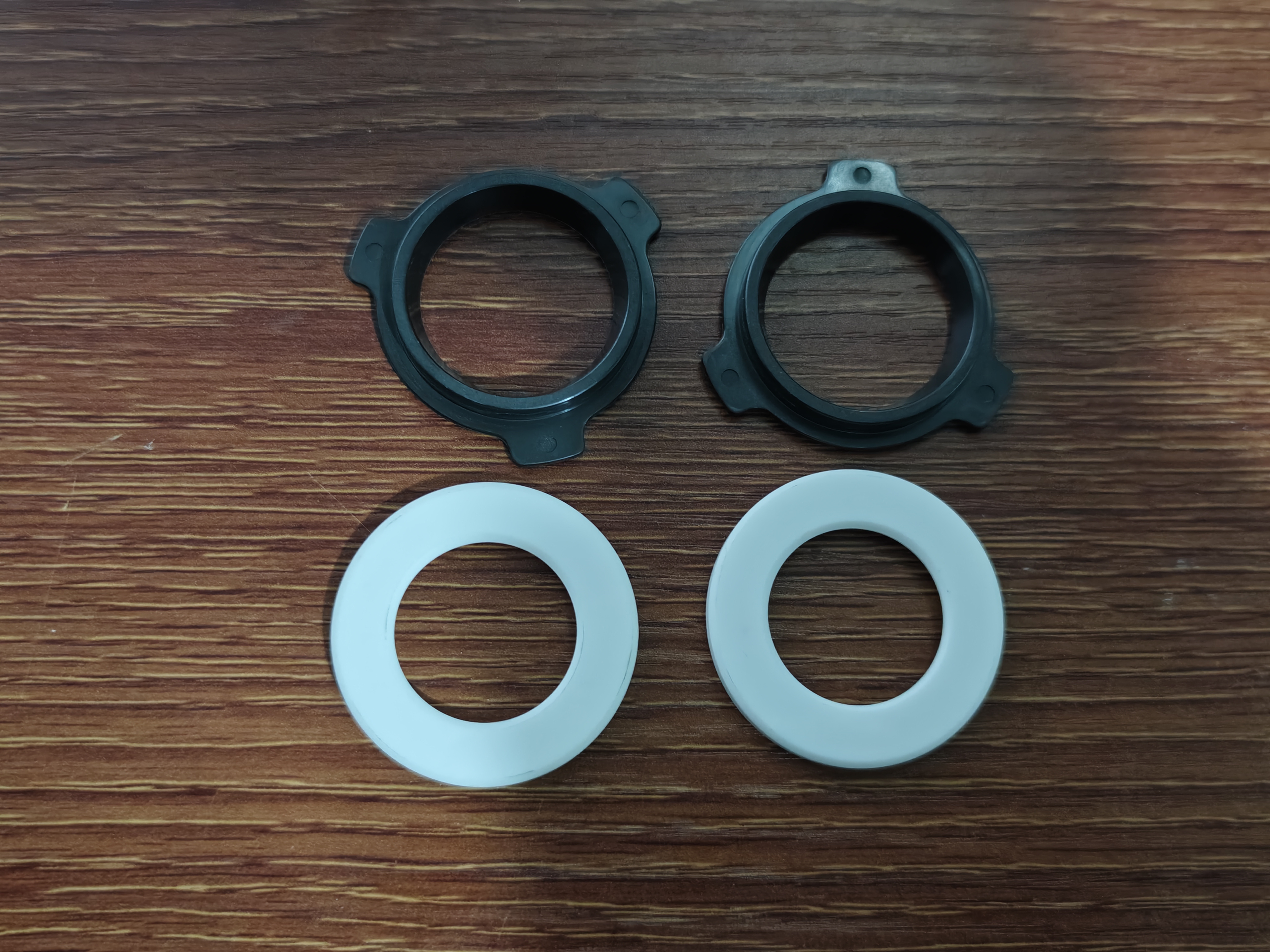

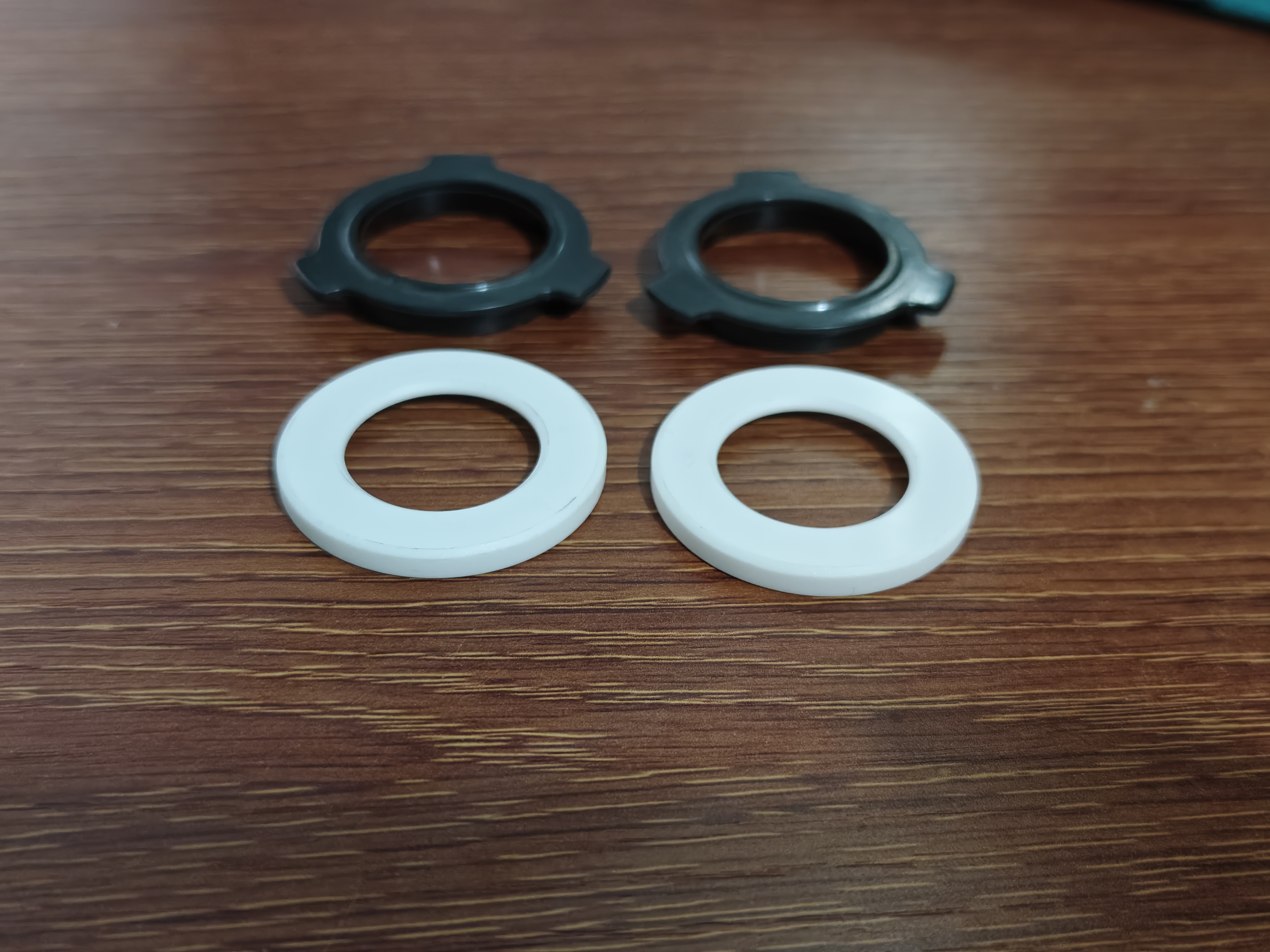

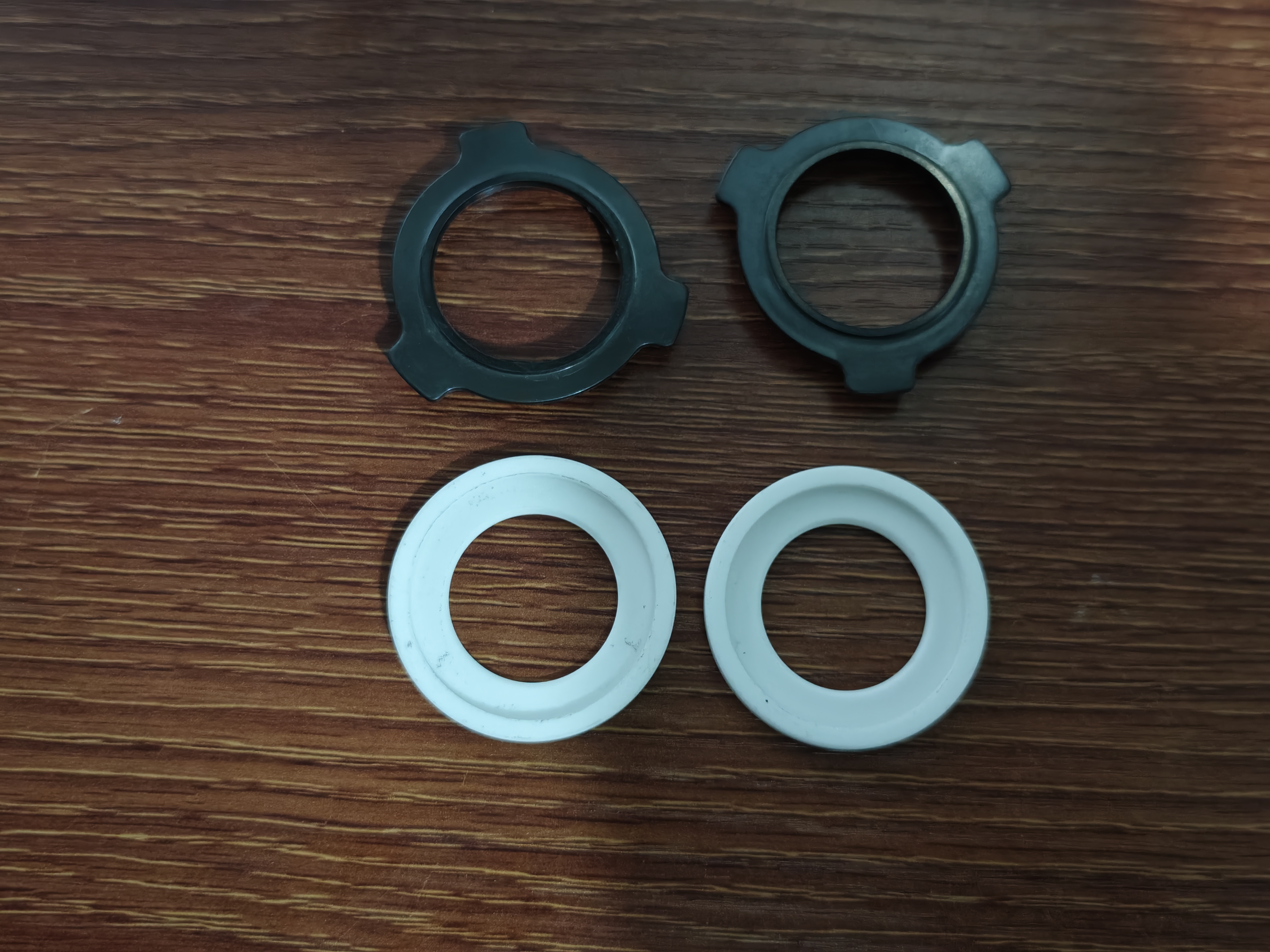

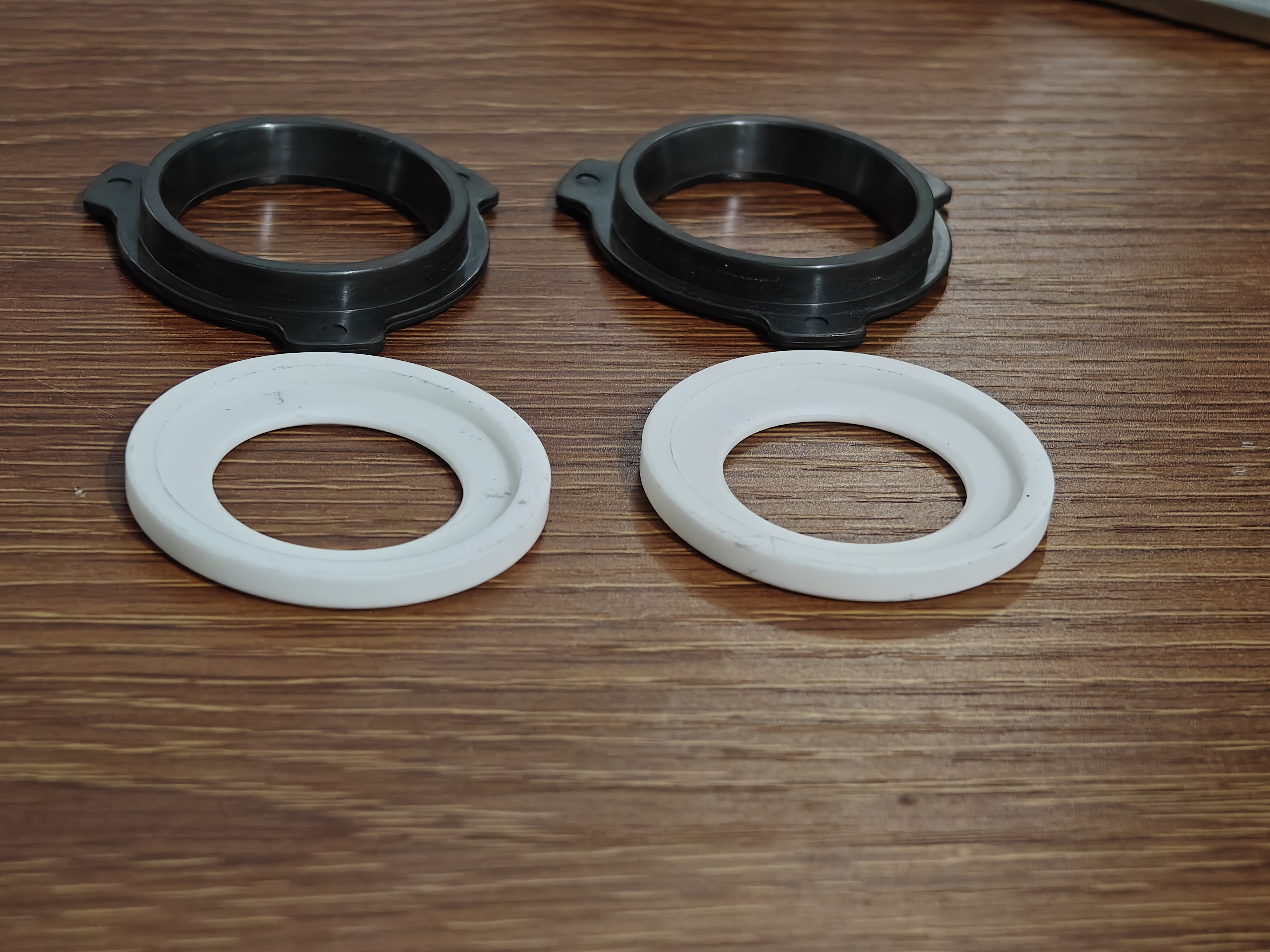

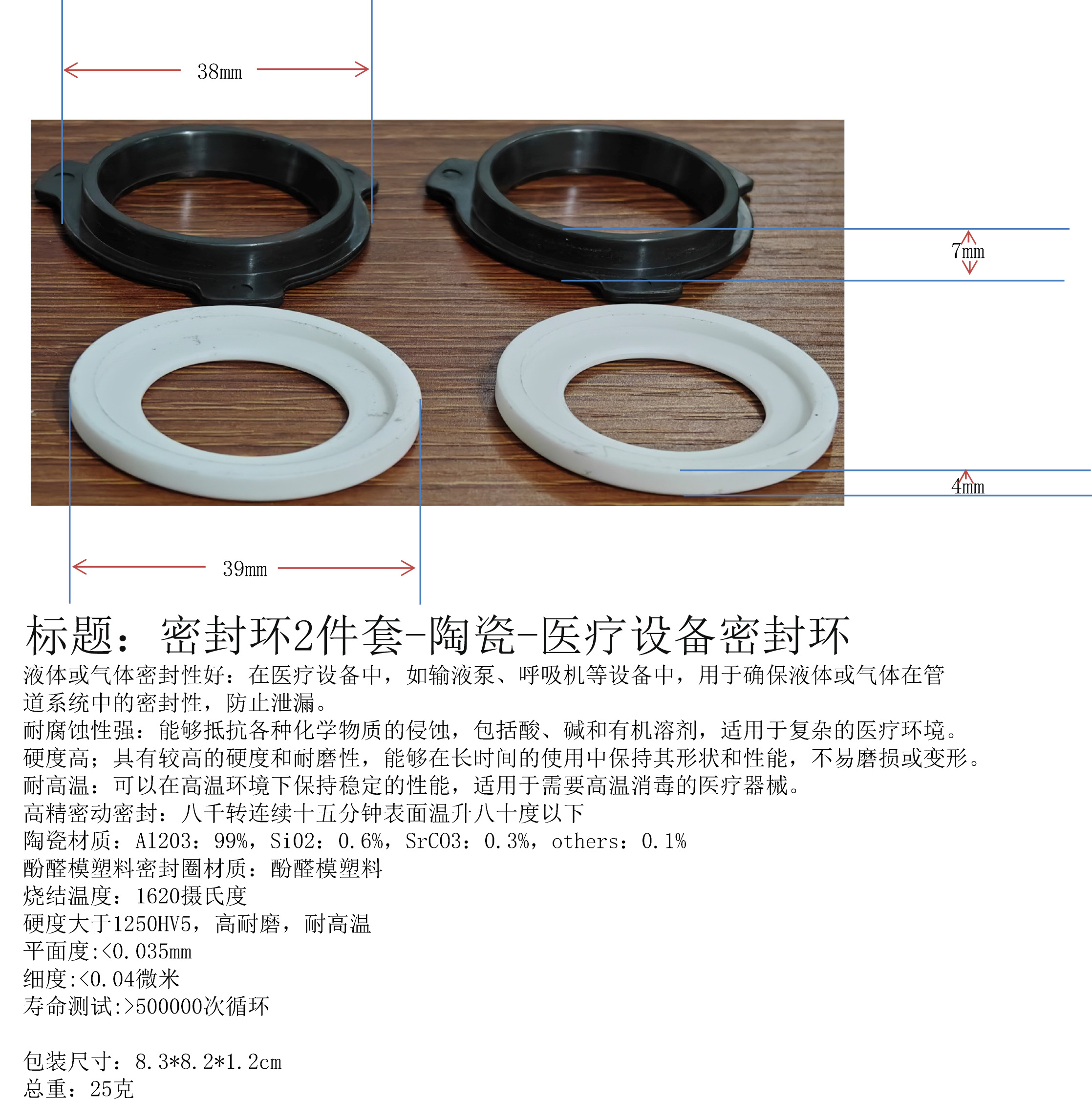

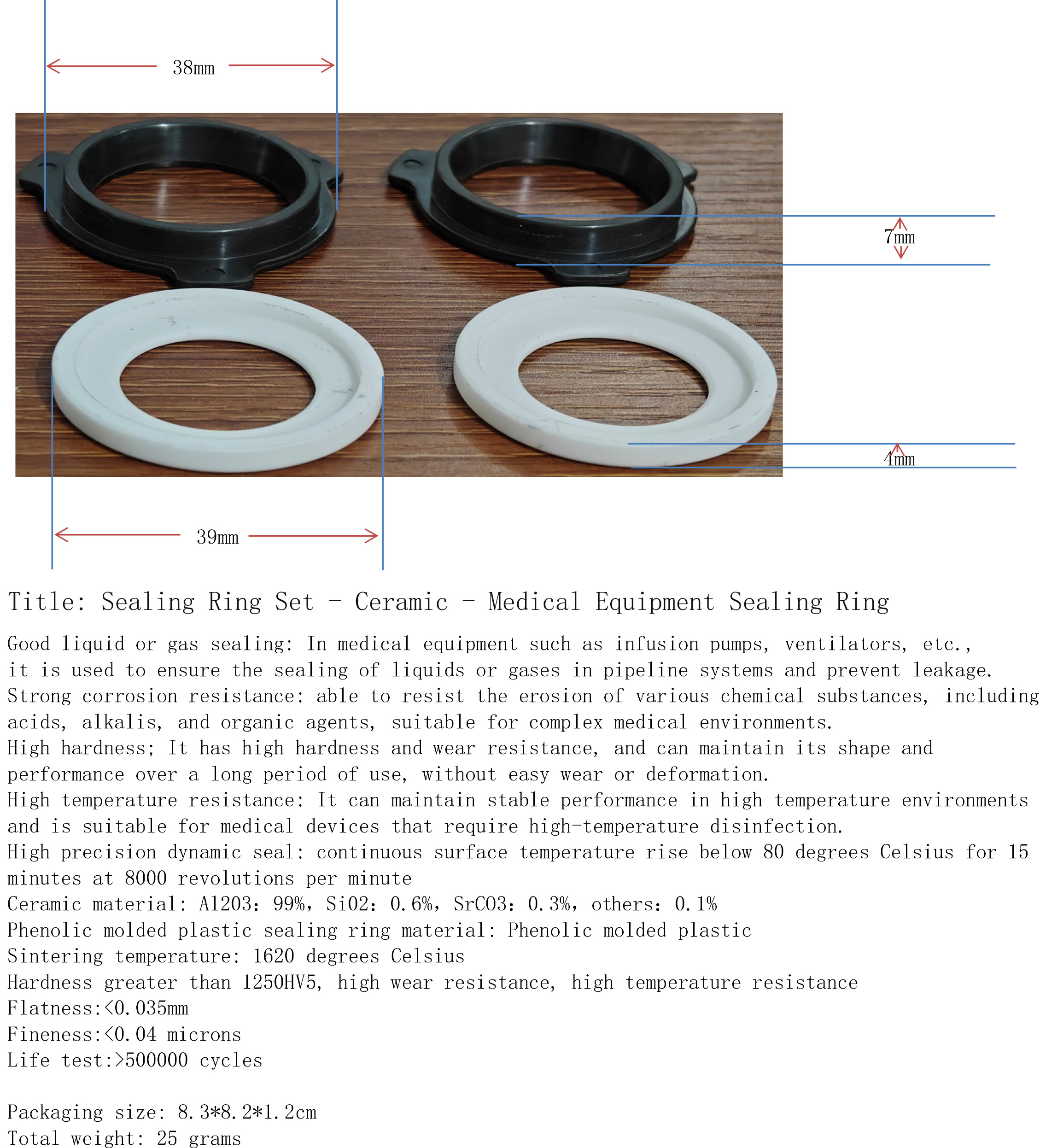

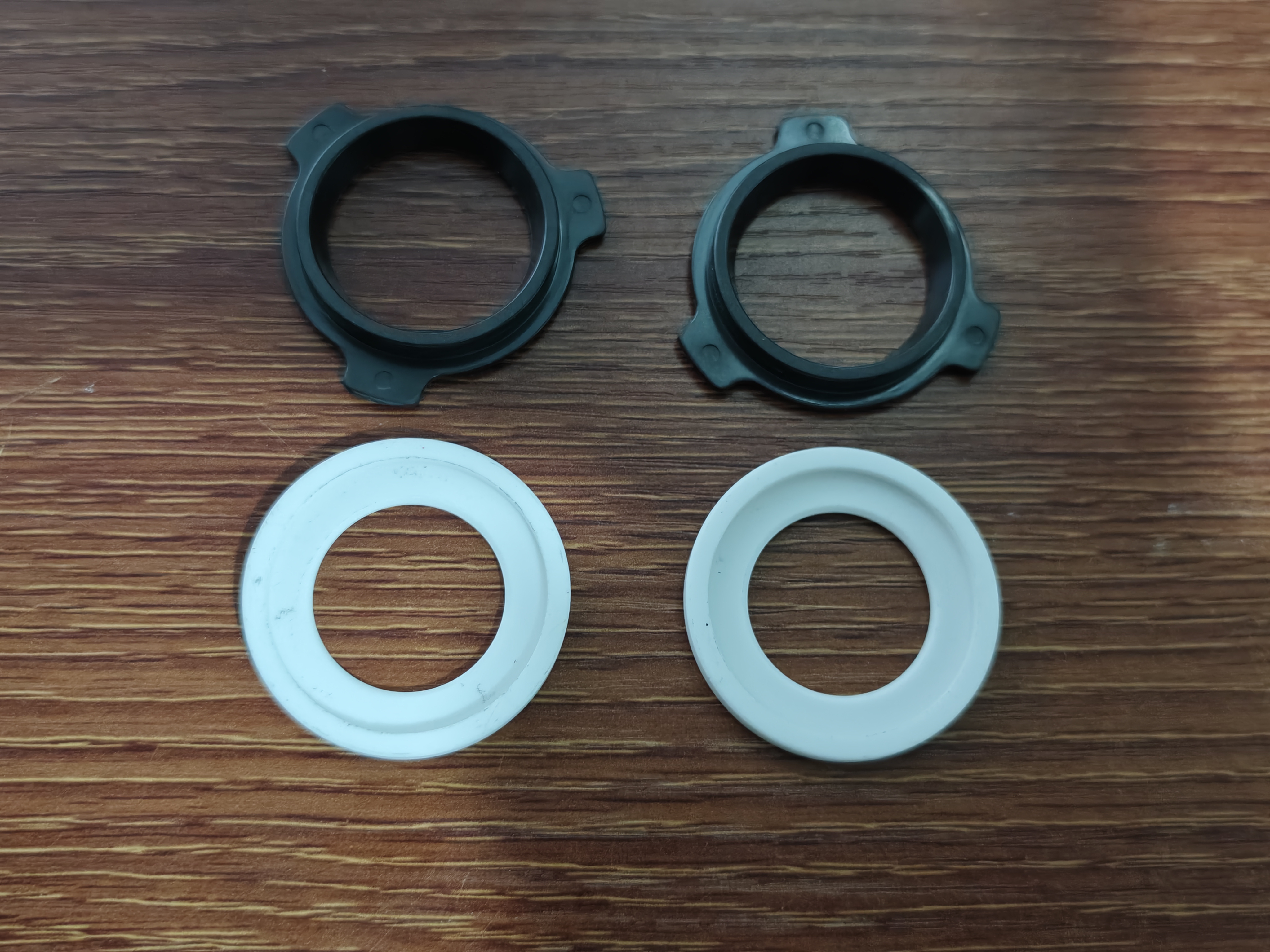

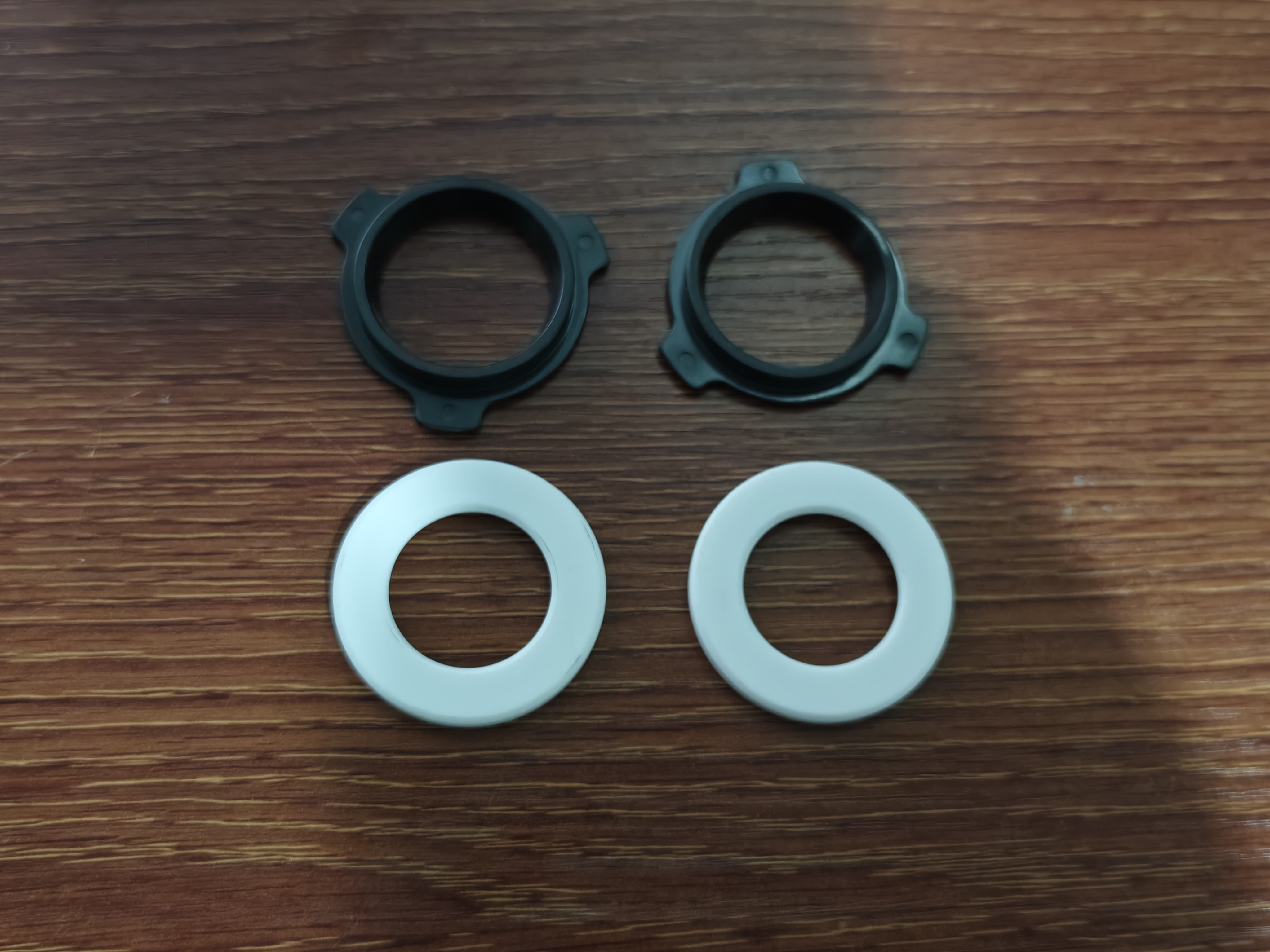

Product Name: Sealing Ring Set - Ceramic - Medical Equipment Sealing Ring

Ceramic material: Al203: 99%, Si02: 0.6%, SrCO3: 0.3%, others: 0.1%

Phenolic molded plastic sealing ring material: Phenolic molded plastic

Product model: YCB-TC-AD 20260118032

Sintering temperature: 1620 degrees Celsius

Hardness greater than 1250HV5, high wear resistance, high temperature resistance

Flatness:<0.035mm

Fineness:<0.04 microns

Life test:>500000 cycles

Packaging size: 8.3*8.2*1.2cm

Total weight: 25 grams

Good liquid or gas sealing: In medical equipment such as infusion pumps, ventilators, etc.,
it is used to ensure the sealing of liquids or gases in pipeline systems and prevent leakage.

Strong corrosion resistance: able to resist the erosion of various chemical substances, including
acids, alkalis, and organic agents, suitable for complex medical environments.

High hardness: It has high hardness and wear resistance, and can maintain its shape and
performance over a long period of use, without easy wear or deformation.

High temperature resistance: It can maintain stable performance in high temperature environments
and is suitable for medical devices that require high-temperature disinfection.

High precision dynamic seal: continuous surface temperature rise below 80 degrees Celsius for 15
minutes at 8000 revolutions per minute
