Beryllium oxide, aluminum nitride, 99 porcelain, silicon carbide, zirconia series

Beryllia ceramic metallization,99.5% BeO

Product description:
INQUIRY

Model No.: YCB-SC-U05

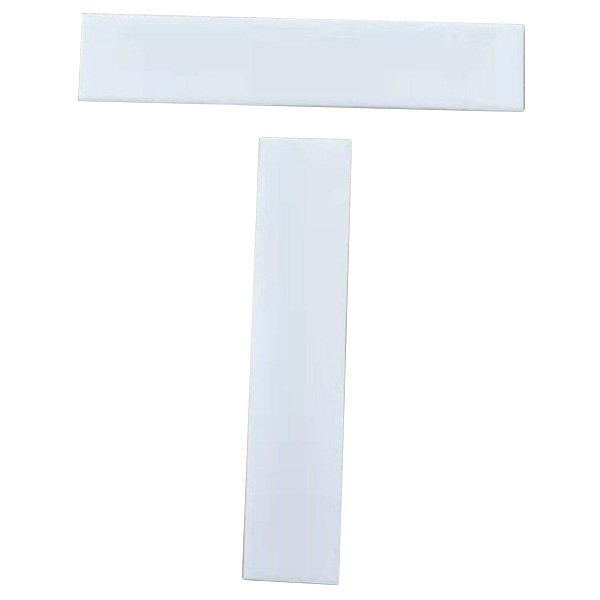

product name: Beryllia ceramic metallization,99.5% BeO
material: BeO:99% Al203:0.18%
SiO2:0.13% Other:0.19%
Thermal conductivity:310 W/m.k
Dielectric constant:6.8 at 1Mhz
Expansion coefficient:7.3*10-6/℃
Density:2.88 g/cm3
Volume resistance:>1014
Dielectric breakdown strength:25Kv/mm porosity:6%
Dissipation factor:<4x10-4 Ghz flexural strength:>200 Mpa

No previous NEXT：Beryllia ceramic metallization,99% BeO
