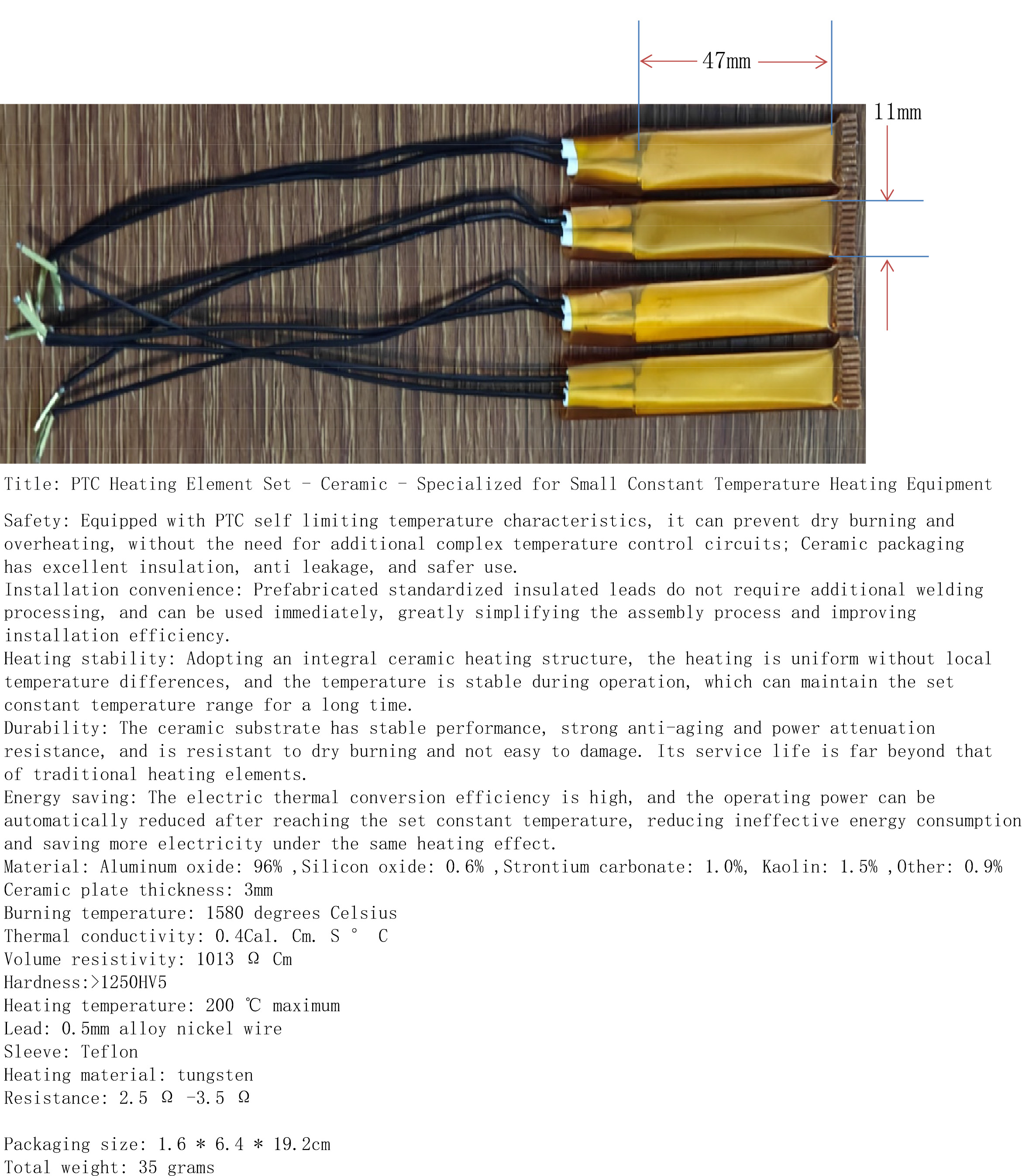

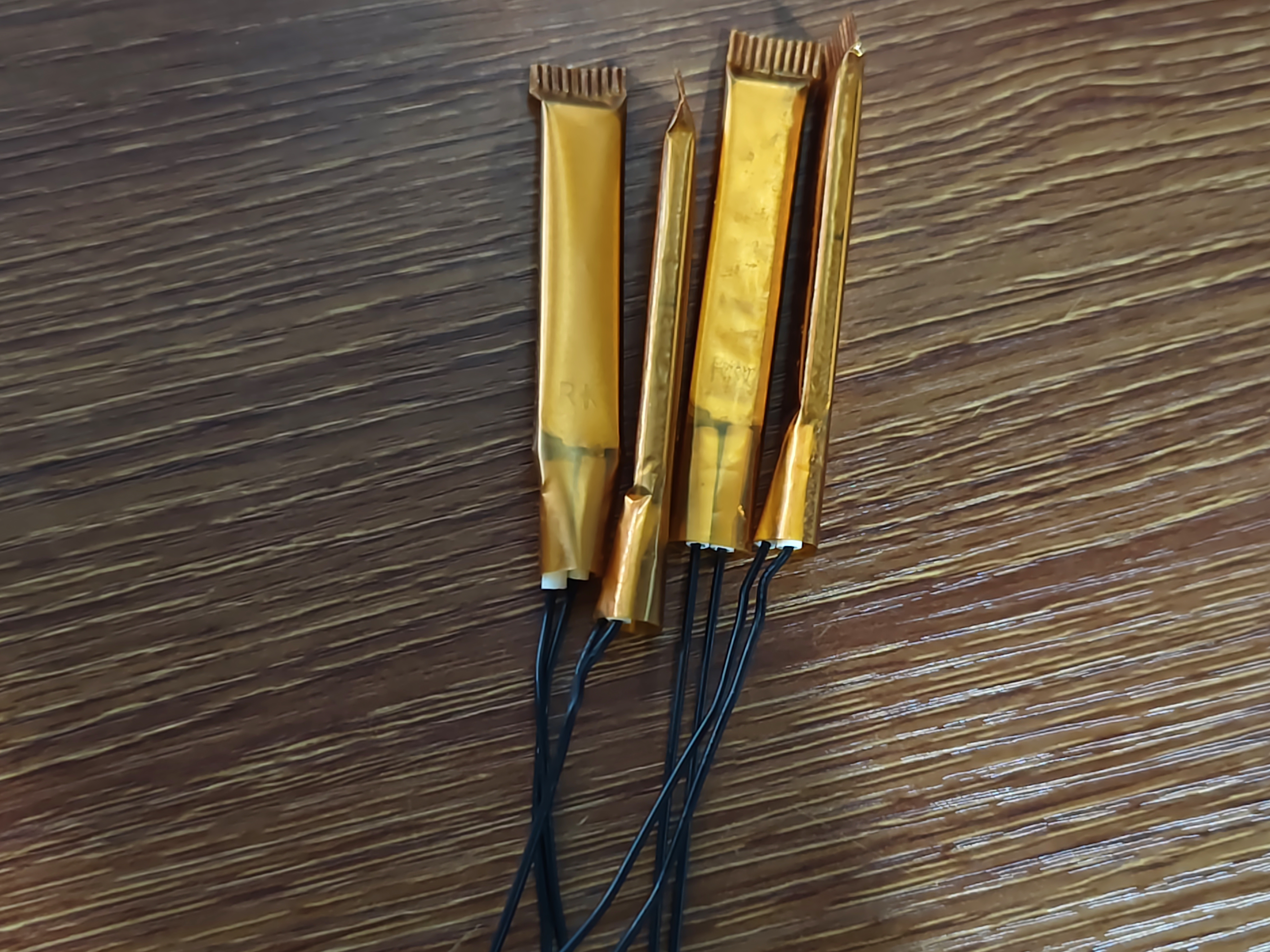

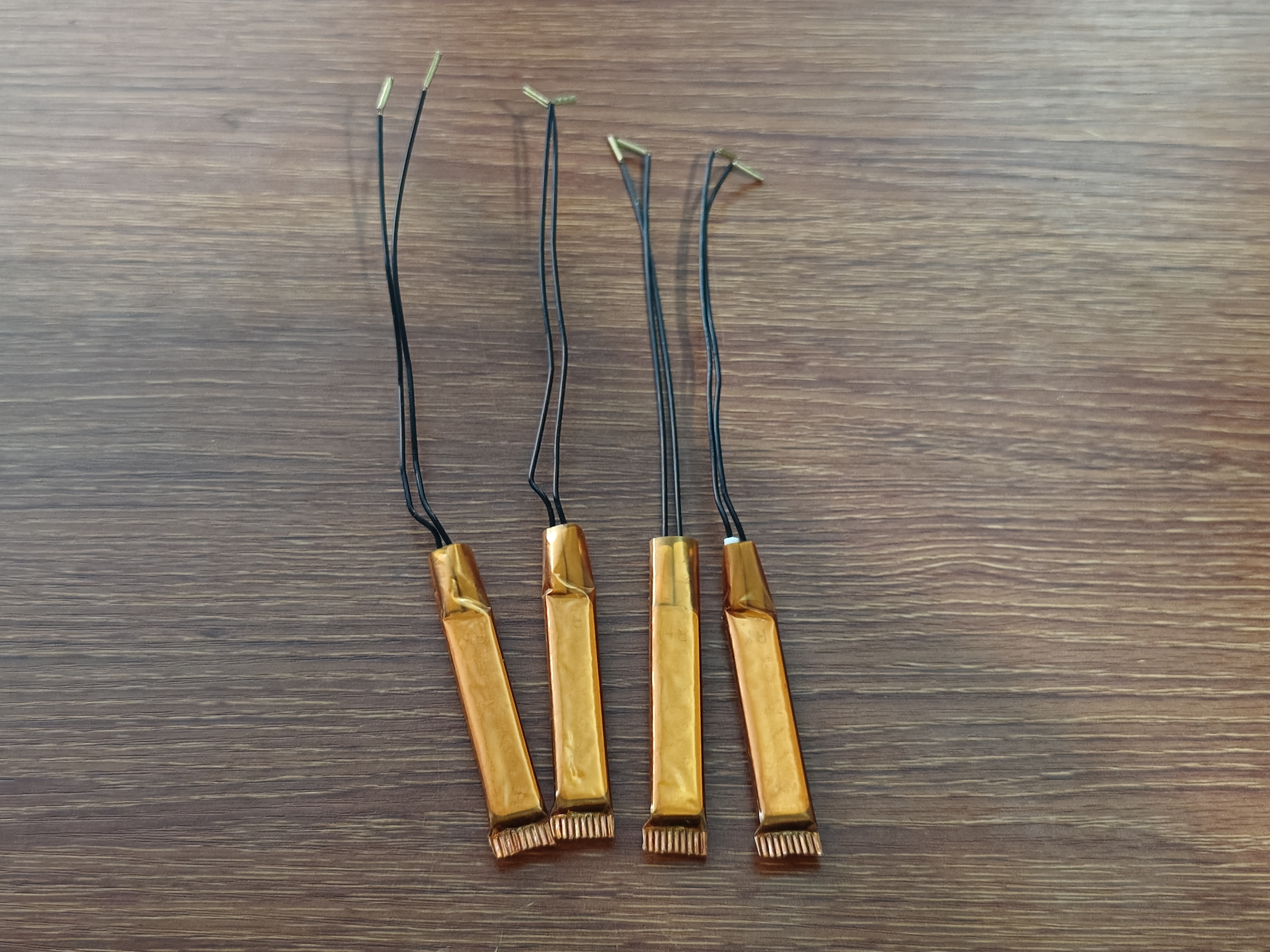

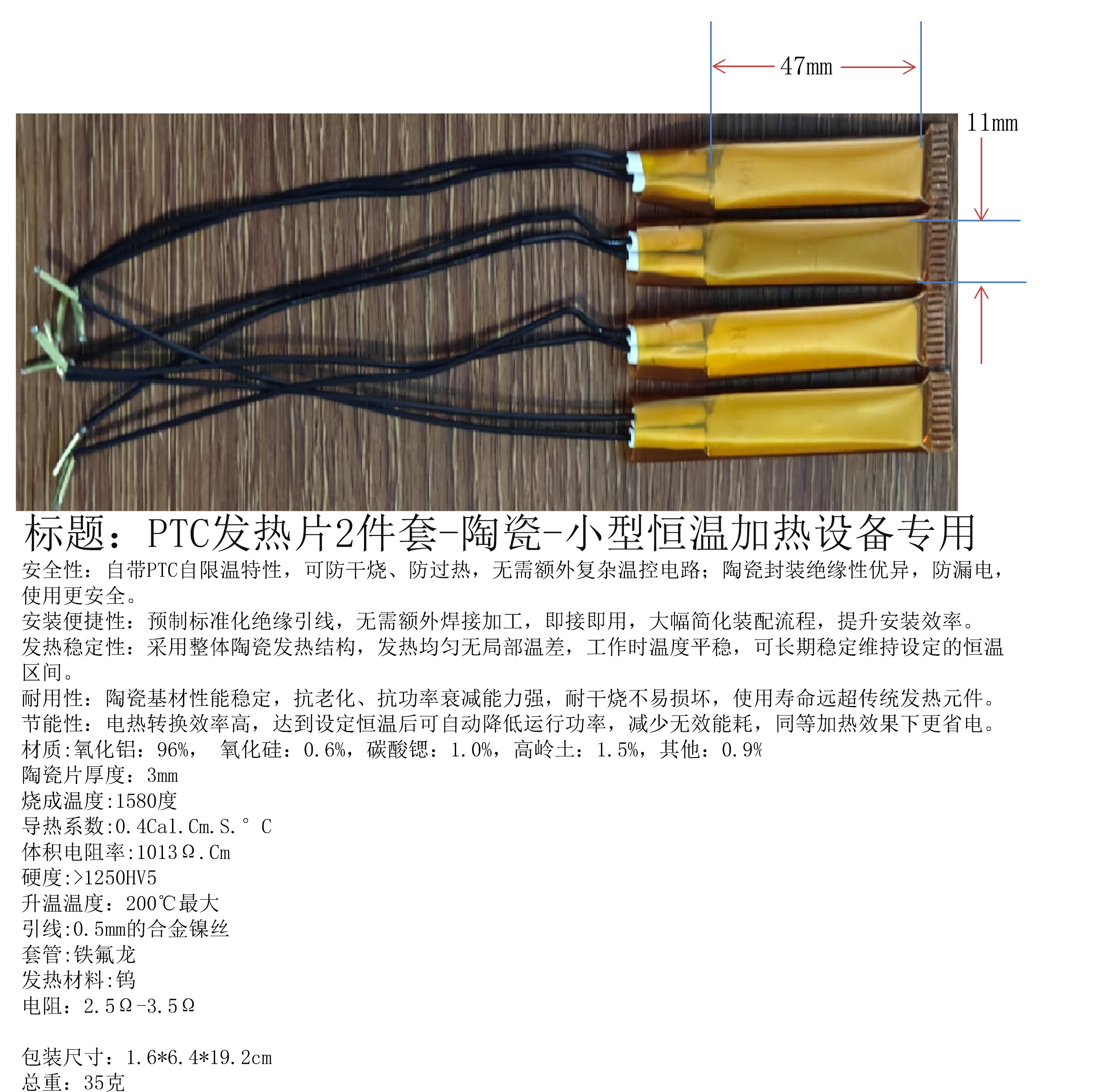

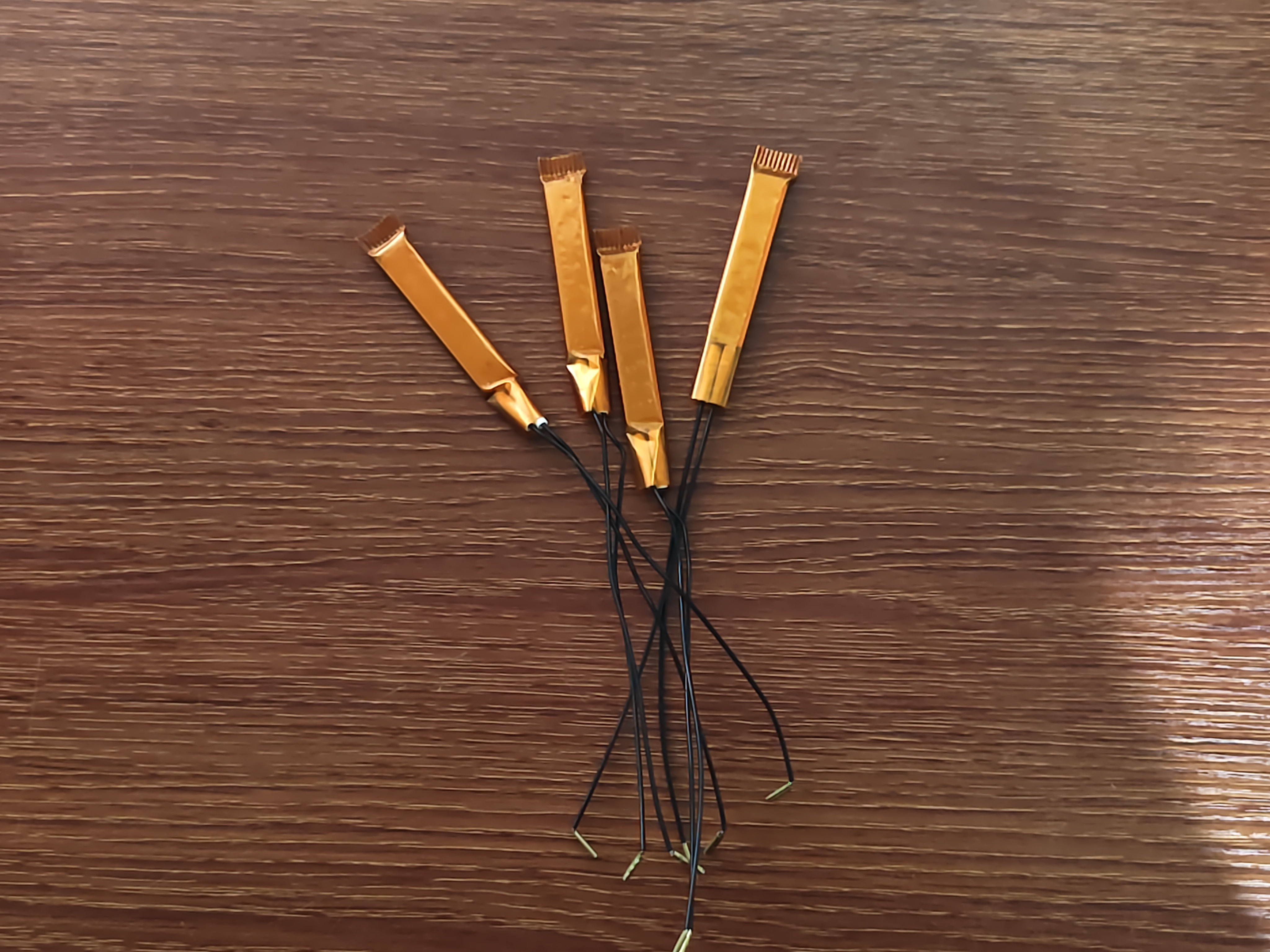

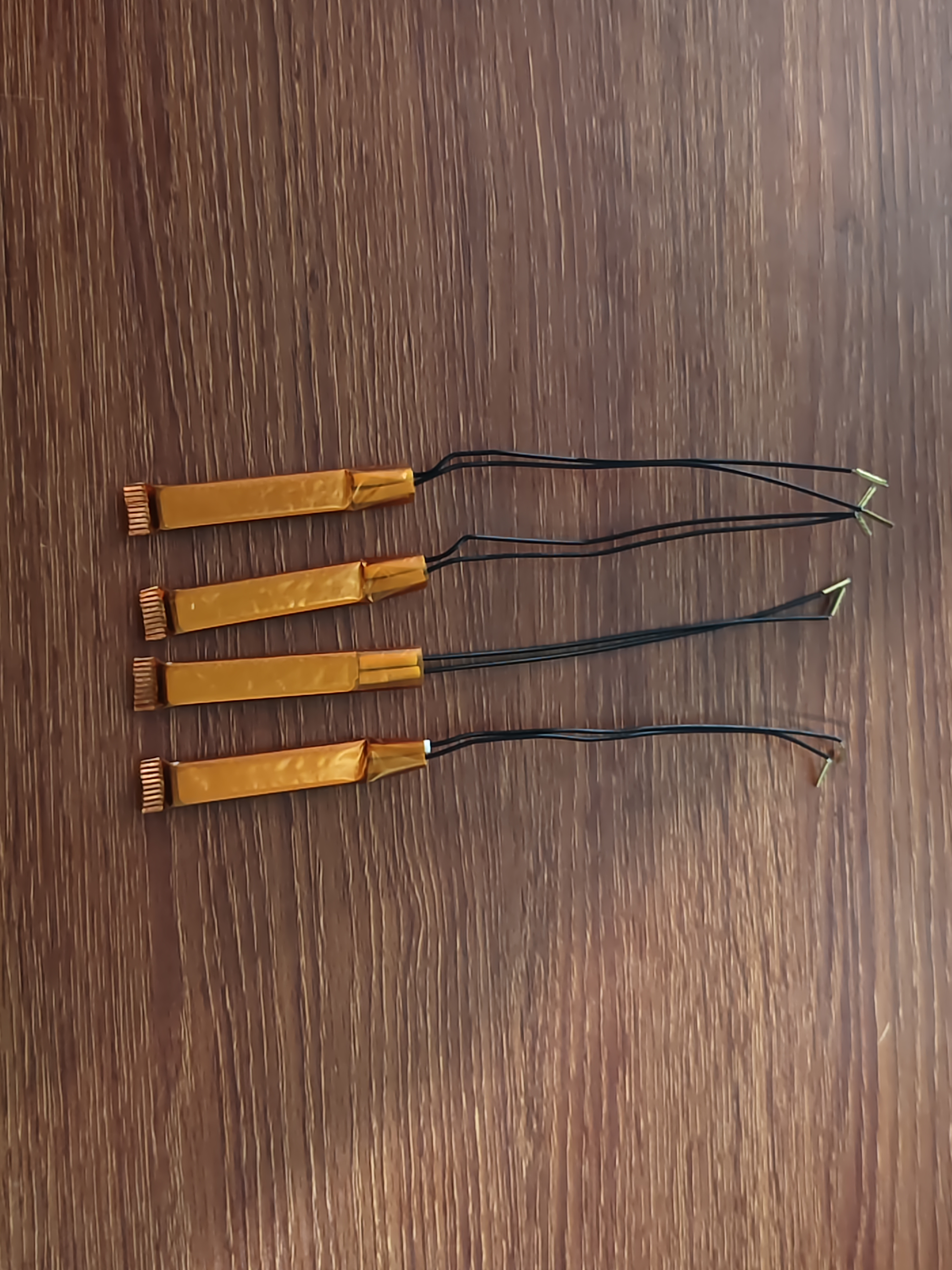

Product Name: PTC Heating Element Set - Ceramic - Specialized for Small Constant Temperature Heating Equipment

Ceramic material: alumina: 96%, silica: 0.6%, strontium carbonate: 1.0%, kaolin: 1.5%, others: 0.9%

Product model: YCB-TC-FR 2026041301

Ceramic plate thickness: 3mm

Burning temperature: 1580 degrees Celsius

Thermal conductivity: 0.4Cal. Cm. S ° C

Volume resistivity: 1013 Ω Cm

Hardness:>1250HV5

Heating temperature: 200 ℃ maximum

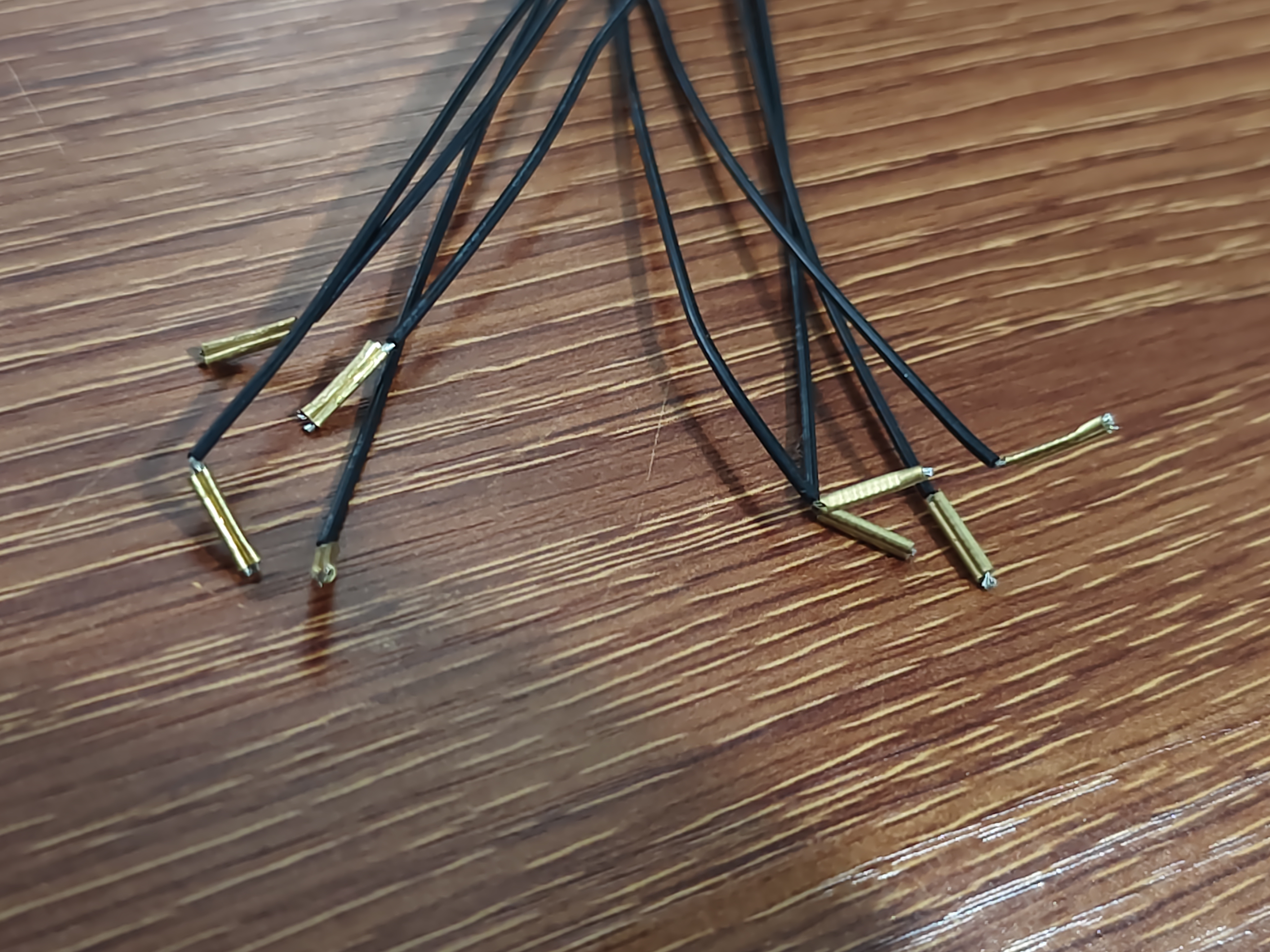

Lead: 0.5mm alloy nickel wire

Heating material: tungsten

Resistance: 2.5 Ω -3.5 Ω

Packaging size: 1.6 * 6.4 * 19.2cm

Total weight: 35 grams

Safety: Equipped with PTC self limiting temperature characteristics, it can prevent dry burning and
overheating, without the need for additional complex temperature control circuits; Ceramic packaging
has excellent insulation, anti leakage, and safer use.
Installation convenience: Prefabricated standardized insulated leads do not require additional welding
processing, and can be used immediately, greatly simplifying the assembly process and improving
installation efficiency.
Heating stability: Adopting an integral ceramic heating structure, the heating is uniform without local
temperature differences, and the temperature is stable during operation, which can maintain the set
constant temperature range for a long time.
Durability: The ceramic substrate has stable performance, strong anti-aging and power attenuation
resistance, and is resistant to dry burning and not easy to damage. Its service life is far beyond that
of traditional heating elements.
Energy saving: The electric thermal conversion efficiency is high, and the operating power can be
automatically reduced after reaching the set constant temperature, reducing ineffective energy consumption
and saving more electricity under the same heating effect.
