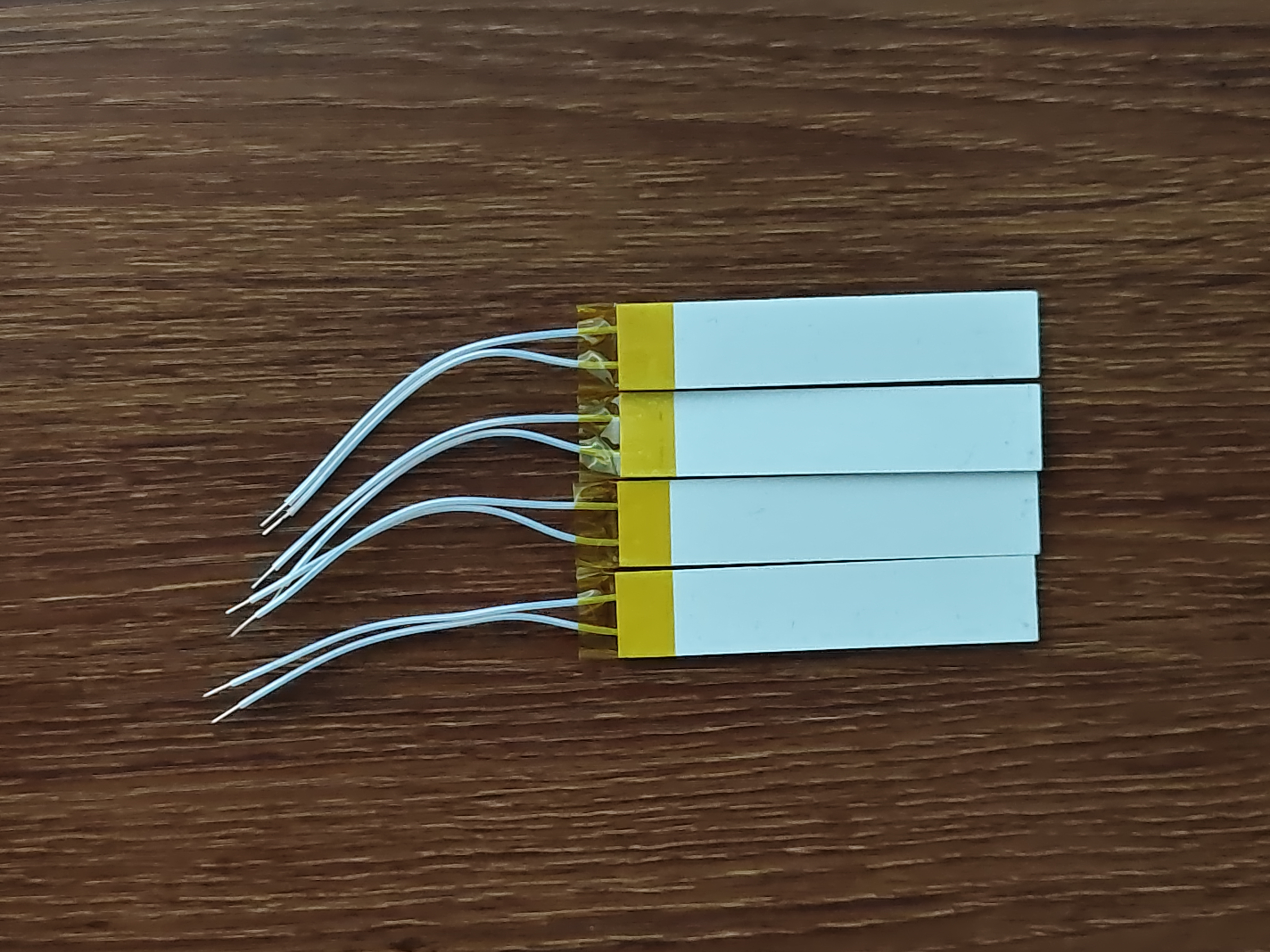

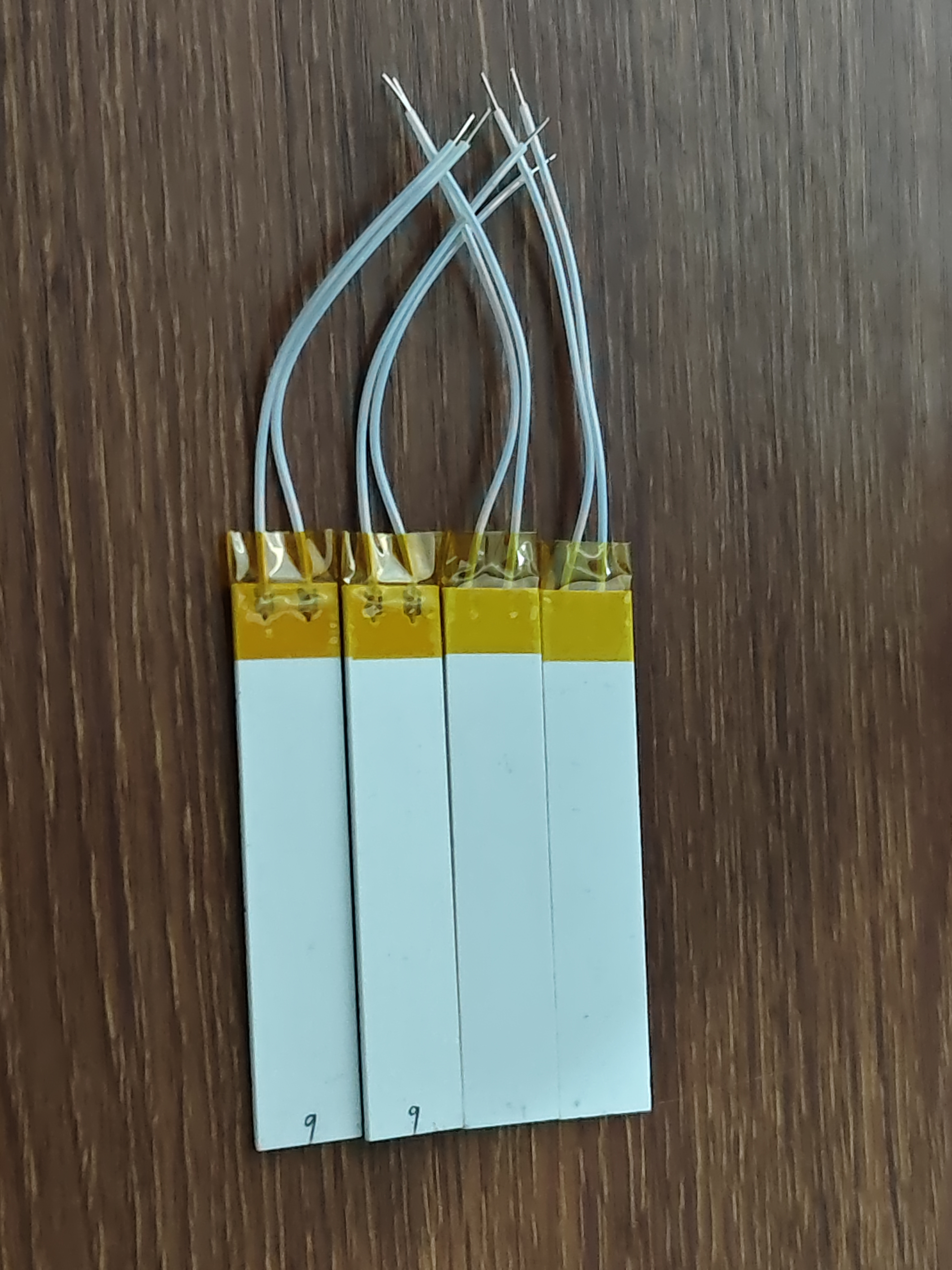

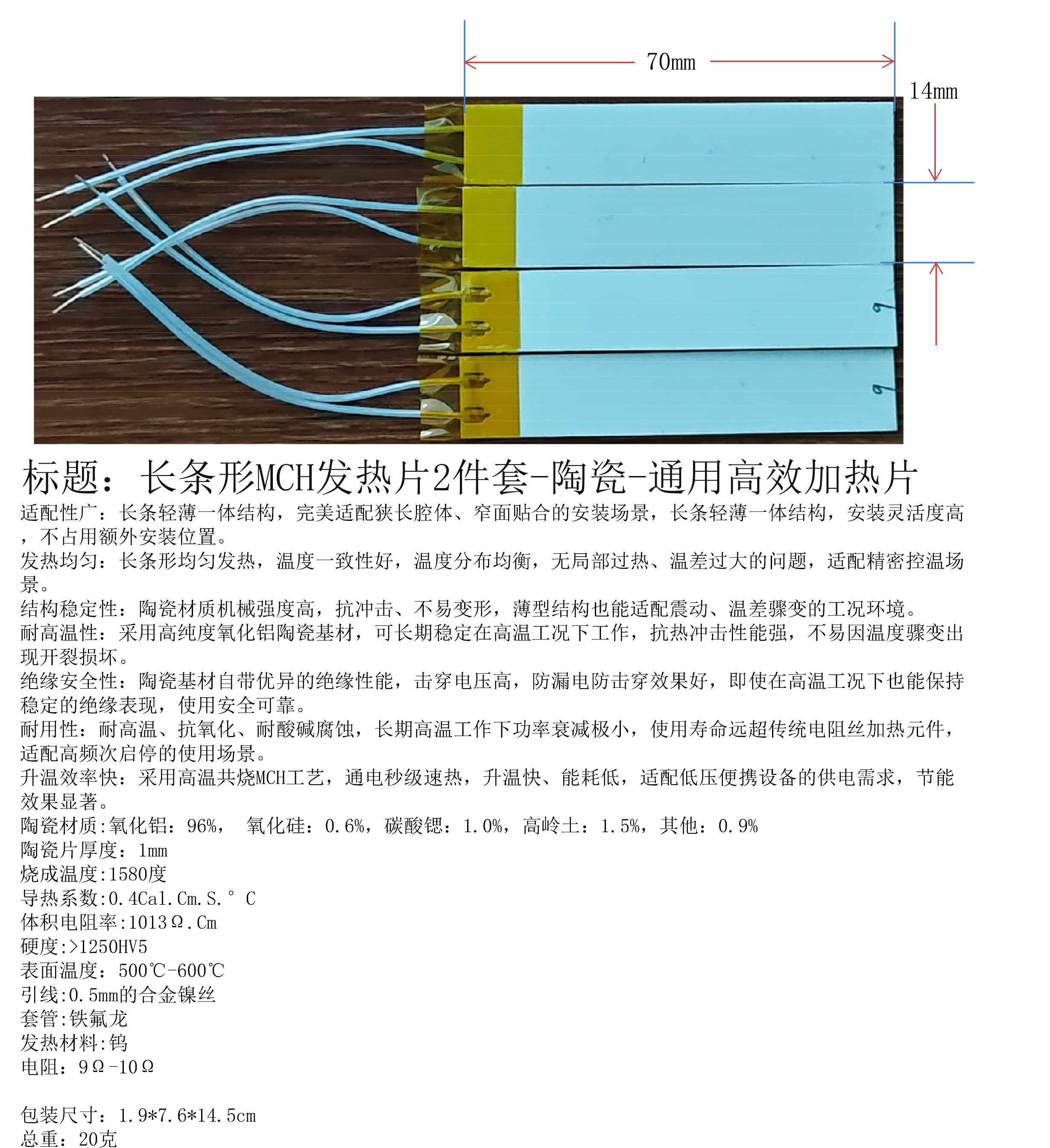

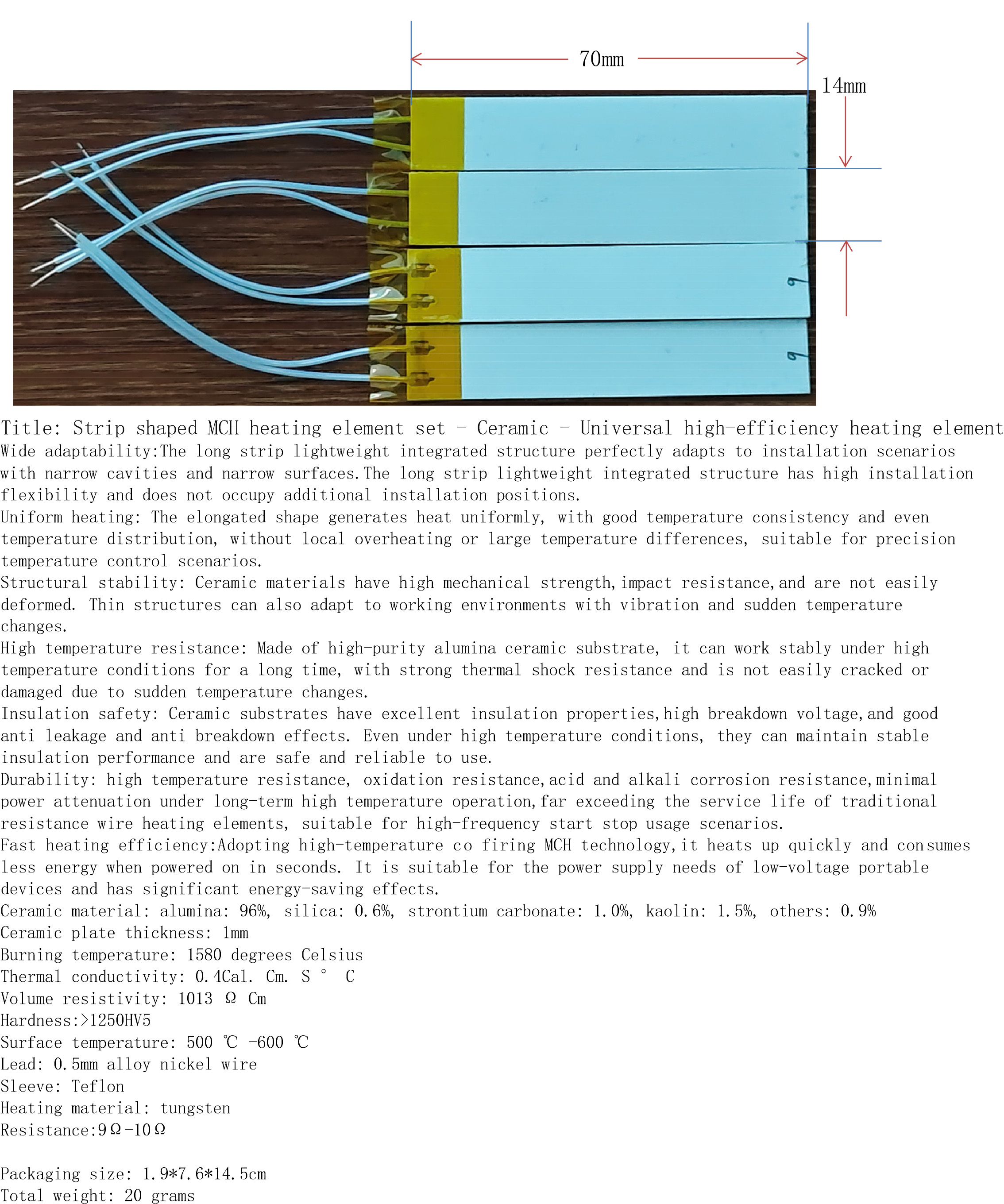

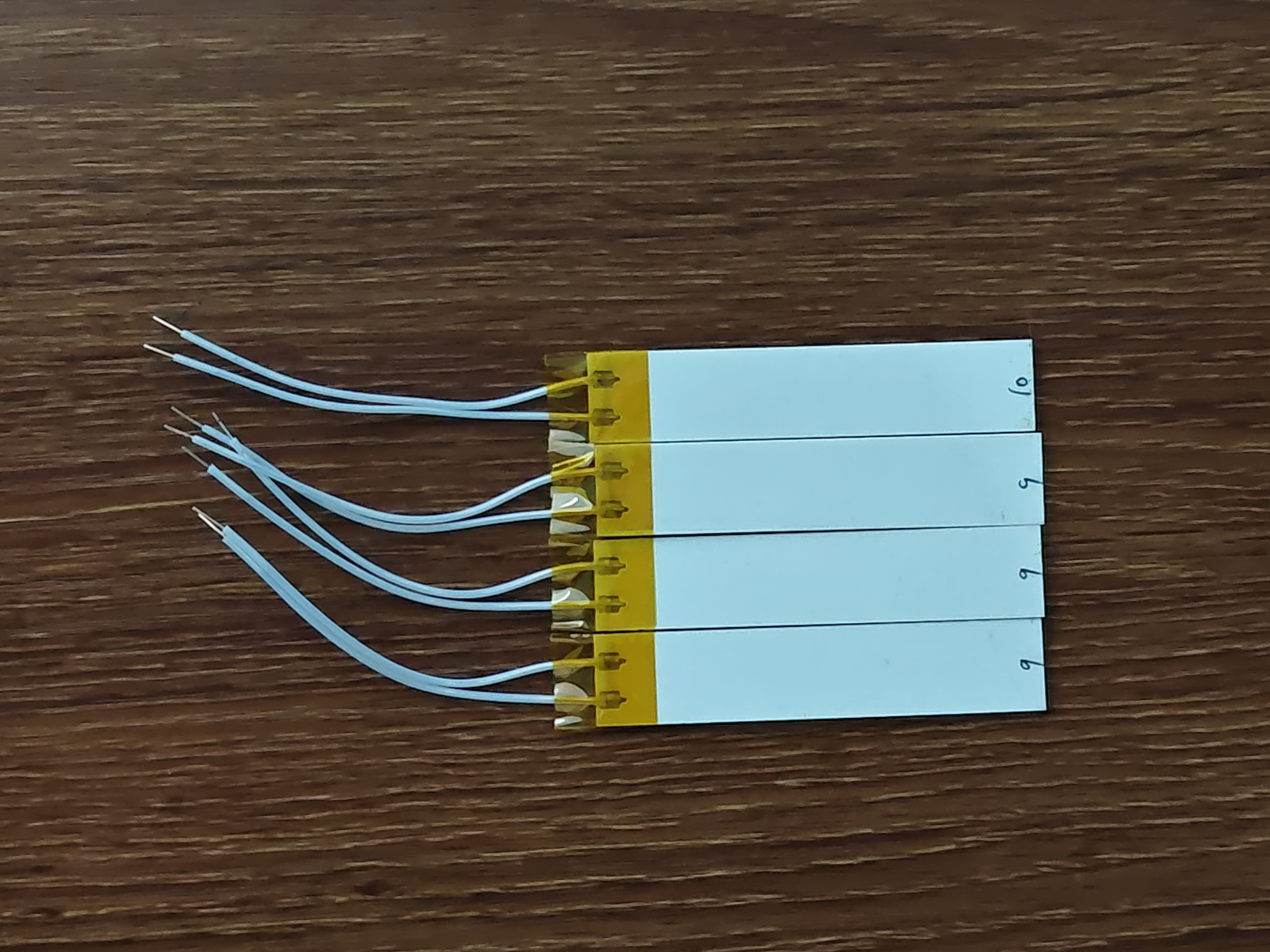

Product Name: Strip shaped MCH heating element set - Ceramic - Universal high-efficiency heating element

Ceramic material: alumina: 96%, silica: 0.6%, strontium carbonate: 1.0%, kaolin: 1.5%, others: 0.9%

Product model: YCB-TC-FR 2026041309

Ceramic plate thickness: 1mm

Burning temperature: 1580 degrees Celsius

Thermal conductivity: 0.4Cal. Cm. S ° C

Volume resistivity: 1013 Ω Cm

Hardness:>1250HV5

Surface temperature: 500 ℃ -600 ℃

Lead: 0.5mm alloy nickel wire

Sleeve: Teflon

Heating material: tungsten

Resistance: 9Ω-10Ω

Packaging size: 1.9*7.6*14.5cm

Total weight: 20 grams

Wide adaptability:The long strip lightweight integrated structure perfectly adapts to installation scenarios
with narrow cavities and narrow surfaces.The long strip lightweight integrated structure has high installation
flexibility and does not occupy additional installation positions.
Uniform heating: The elongated shape generates heat uniformly, with good temperature consistency and even
temperature distribution, without local overheating or large temperature differences, suitable for precision
temperature control scenarios.
Structural stability: Ceramic materials have high mechanical strength,impact resistance,and are not easily
deformed. Thin structures can also adapt to working environments with vibration and sudden temperature
changes.
High temperature resistance: Made of high-purity alumina ceramic substrate, it can work stably under high
temperature conditions for a long time, with strong thermal shock resistance and is not easily cracked or
damaged due to sudden temperature changes.
Insulation safety: Ceramic substrates have excellent insulation properties,high breakdown voltage,and good
anti leakage and anti breakdown effects. Even under high temperature conditions, they can maintain stable
insulation performance and are safe and reliable to use.
Durability: high temperature resistance, oxidation resistance,acid and alkali corrosion resistance,minimal
power attenuation under long-term high temperature operation,far exceeding the service life of traditional
resistance wire heating elements, suitable for high-frequency start stop usage scenarios.
Fast heating efficiency:Adopting high-temperature co firing MCH technology,it heats up quickly and consumes
less energy when powered on in seconds. It is suitable for the power supply needs of low-voltage portable
devices and has significant energy-saving effects.
