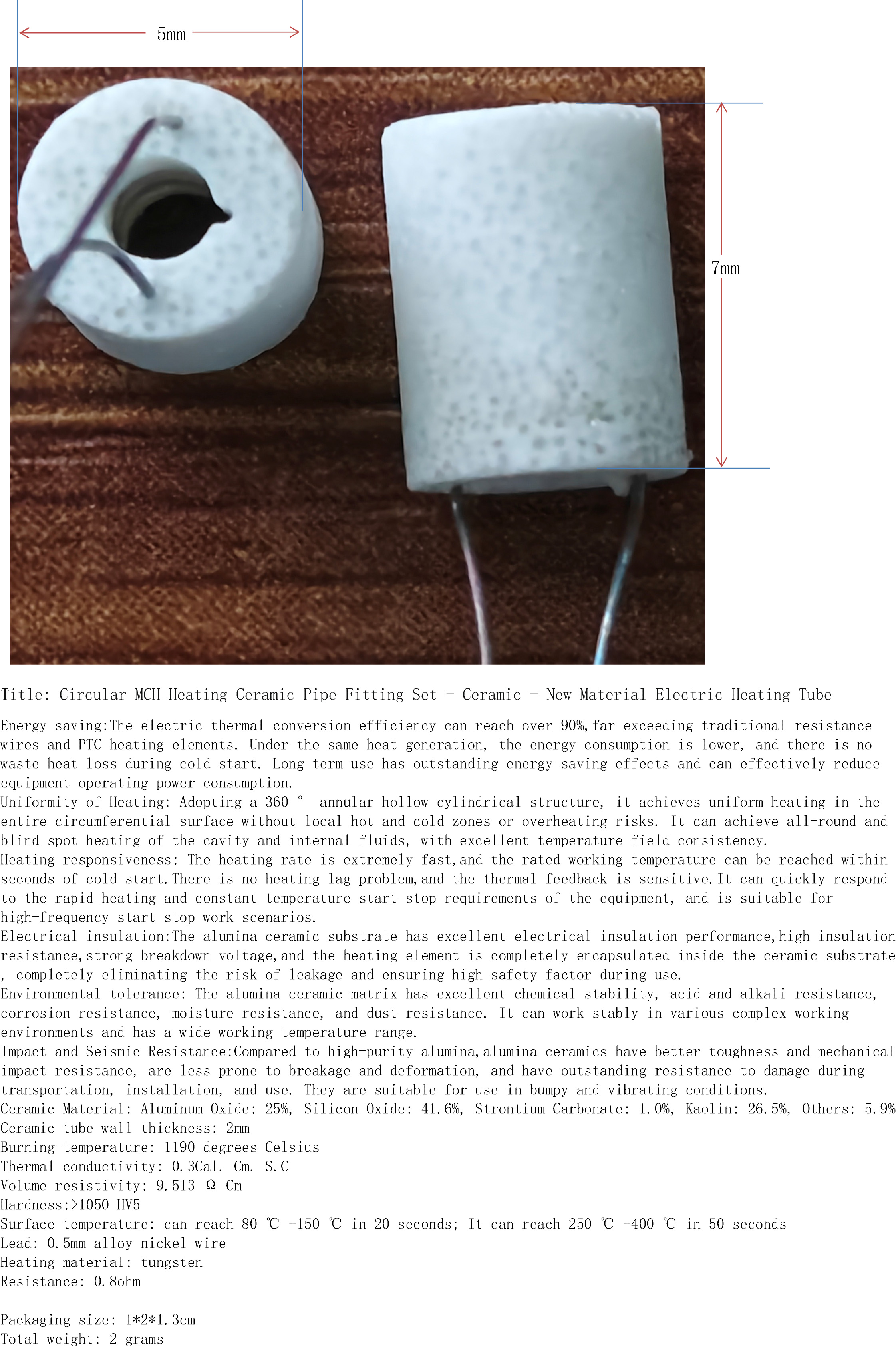

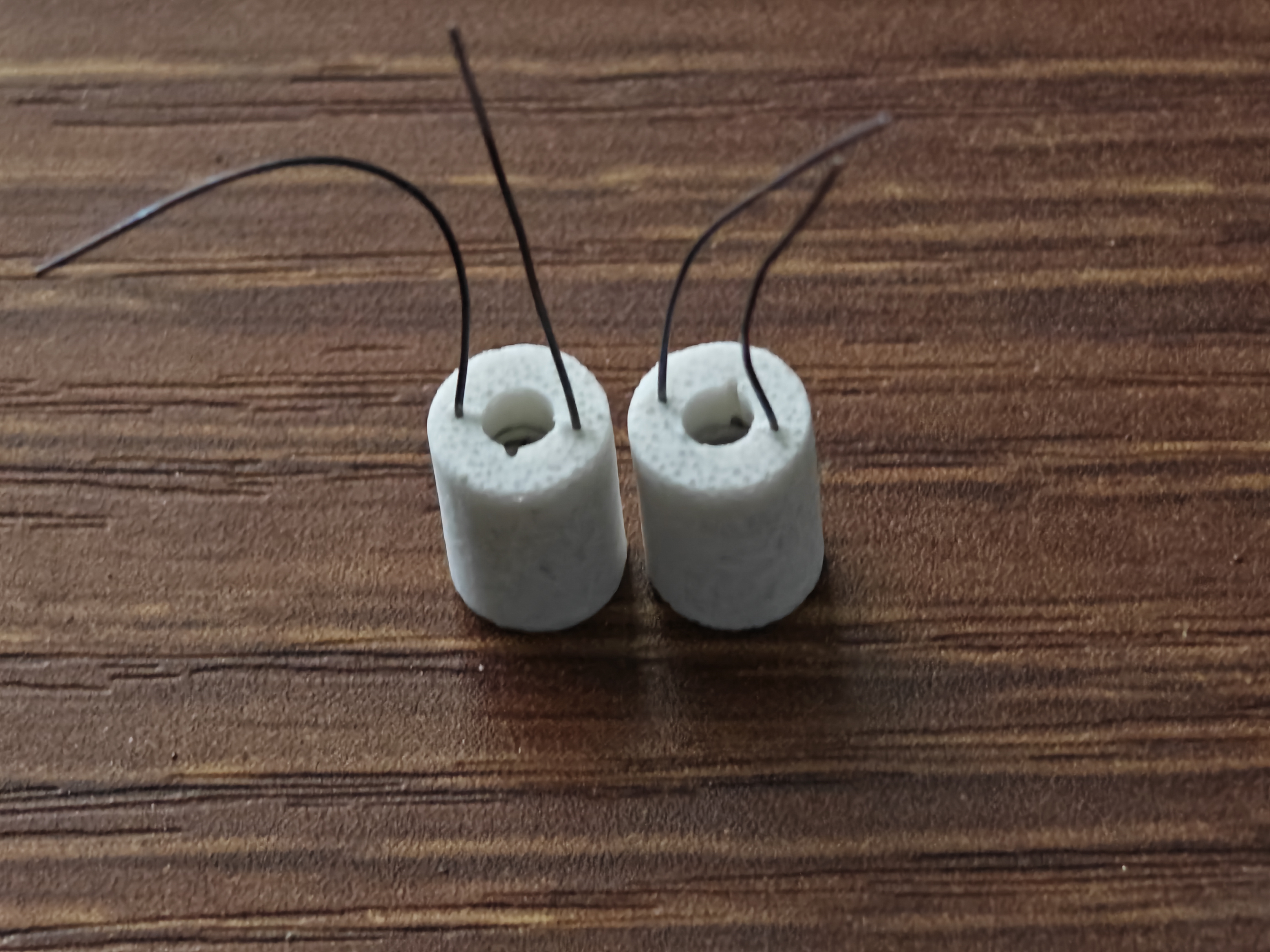

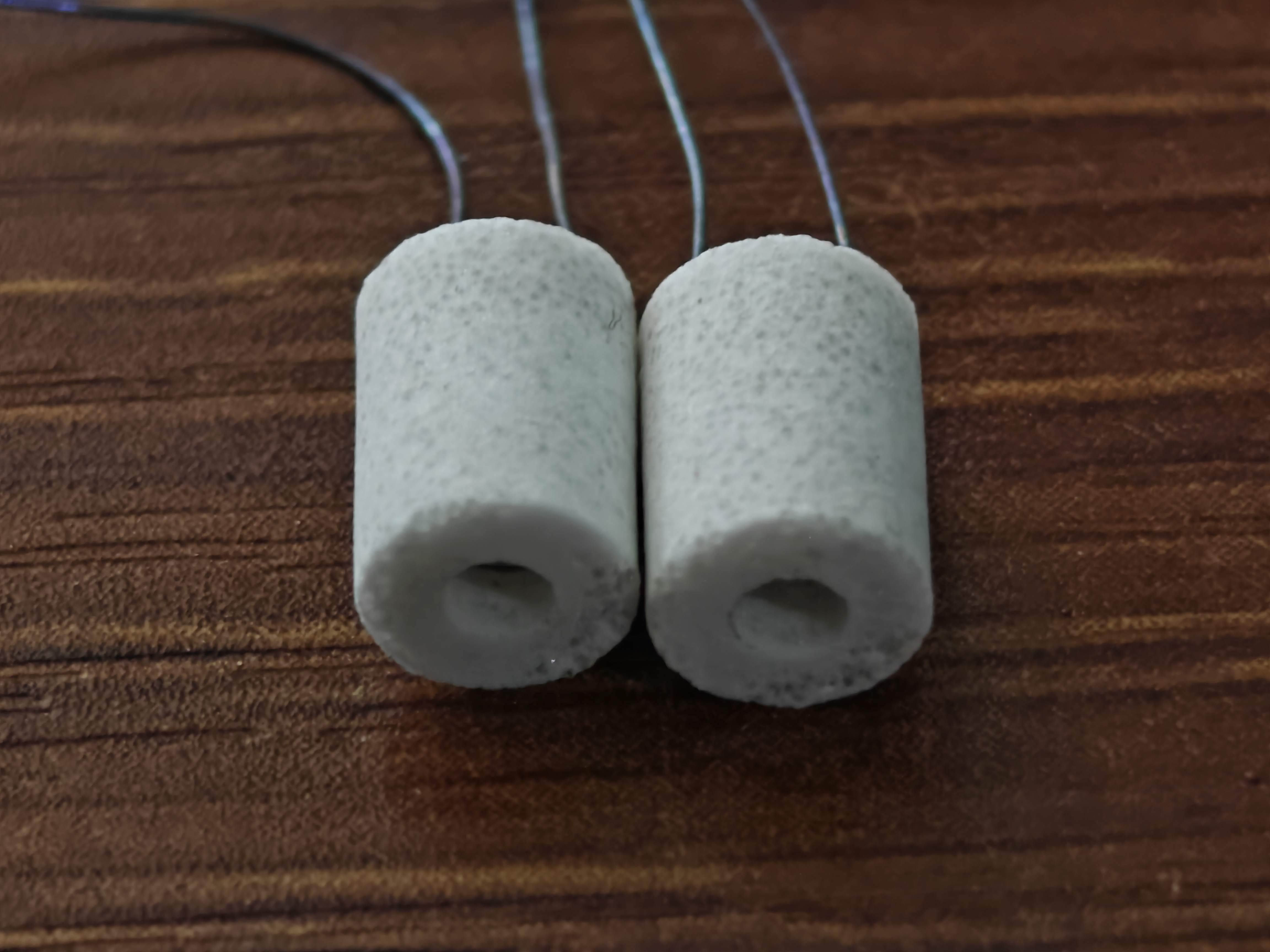

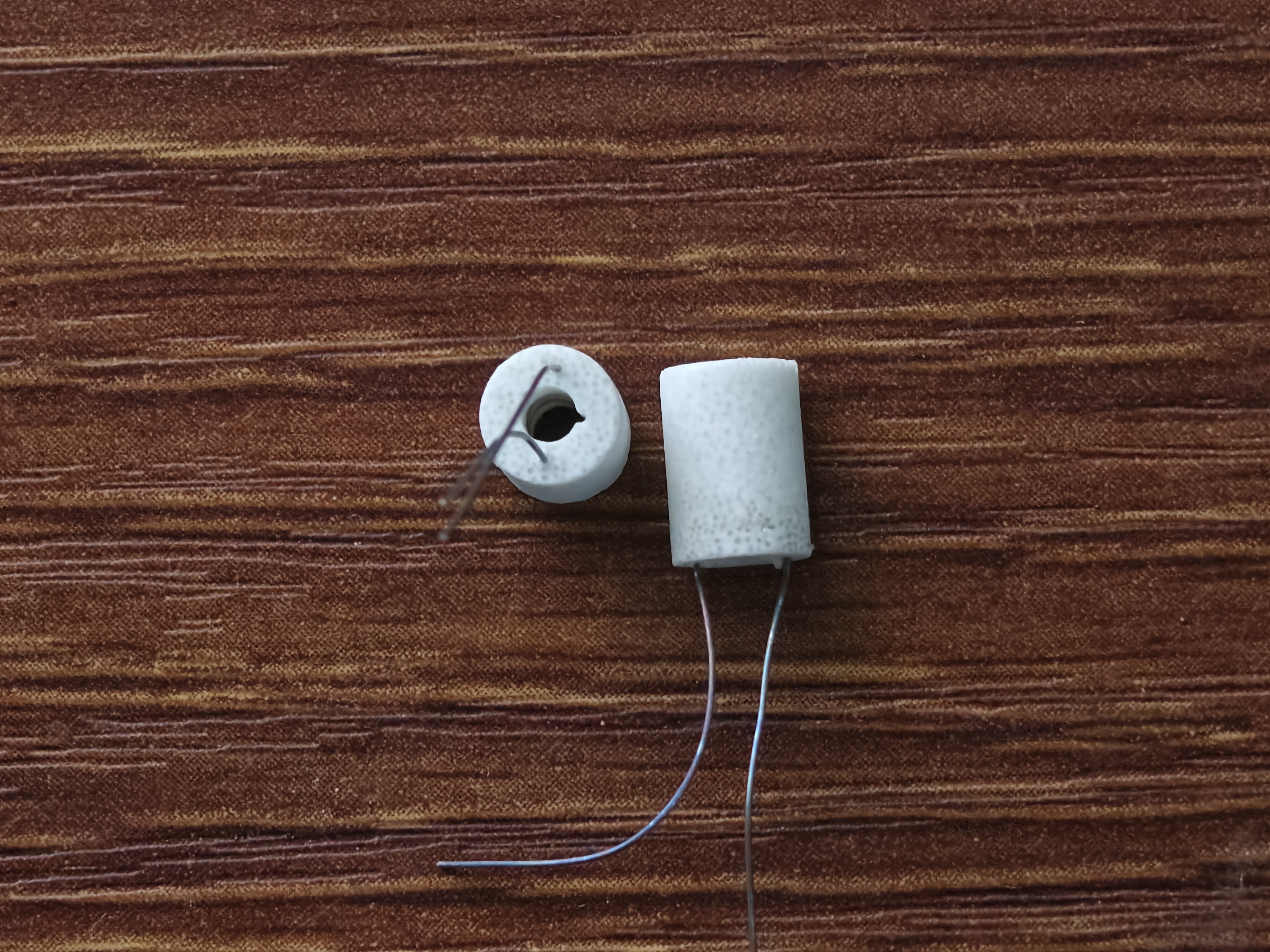

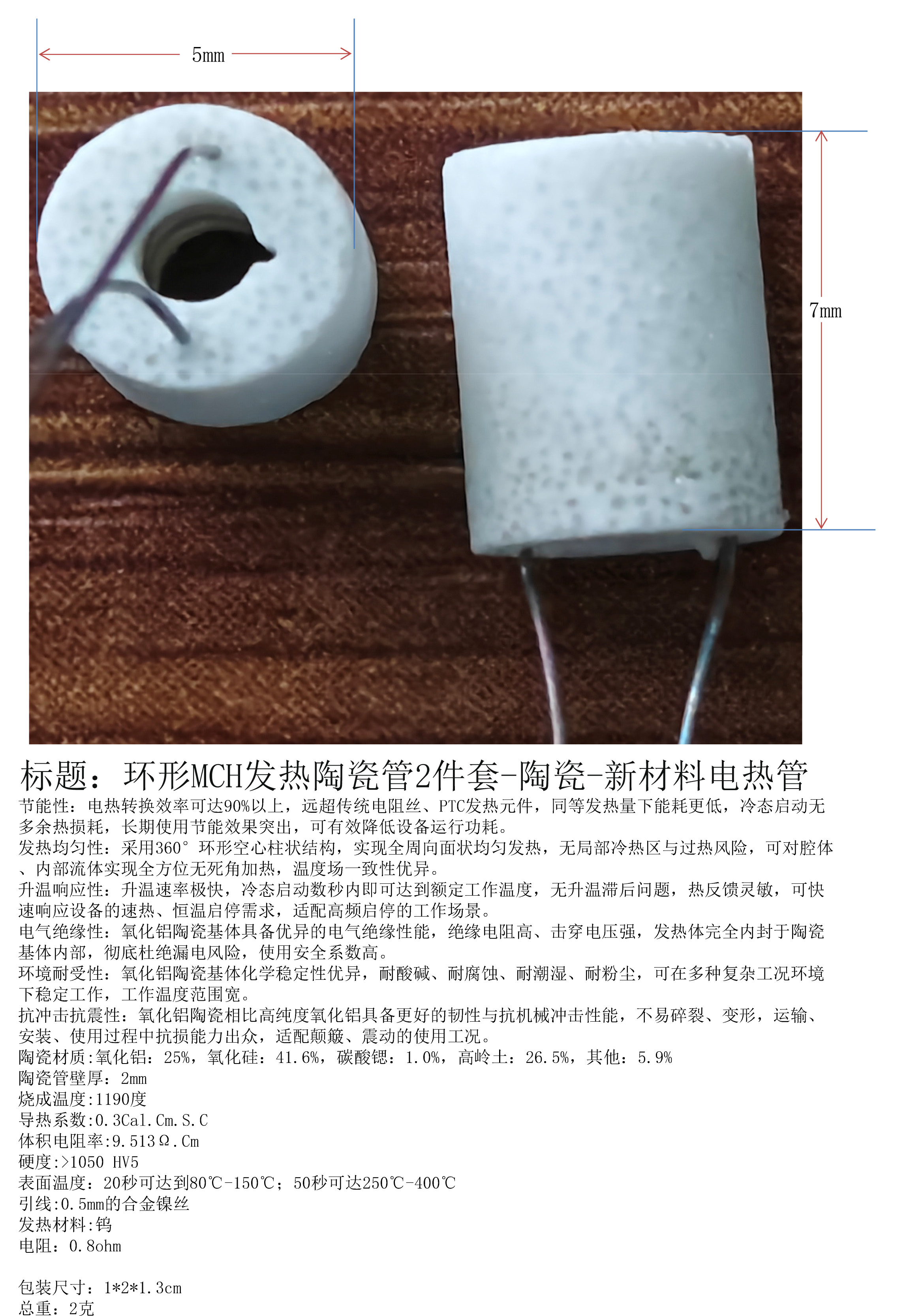

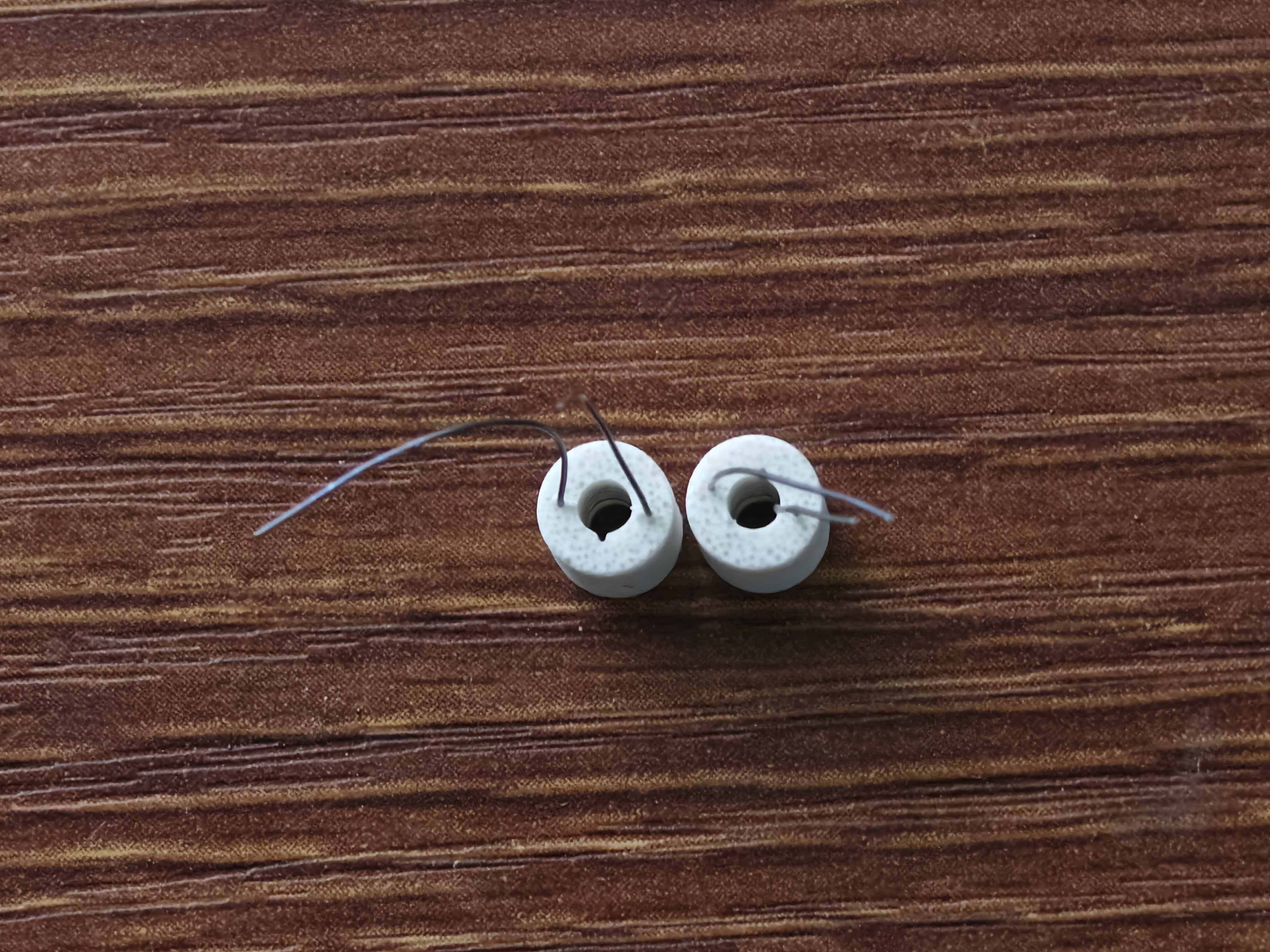

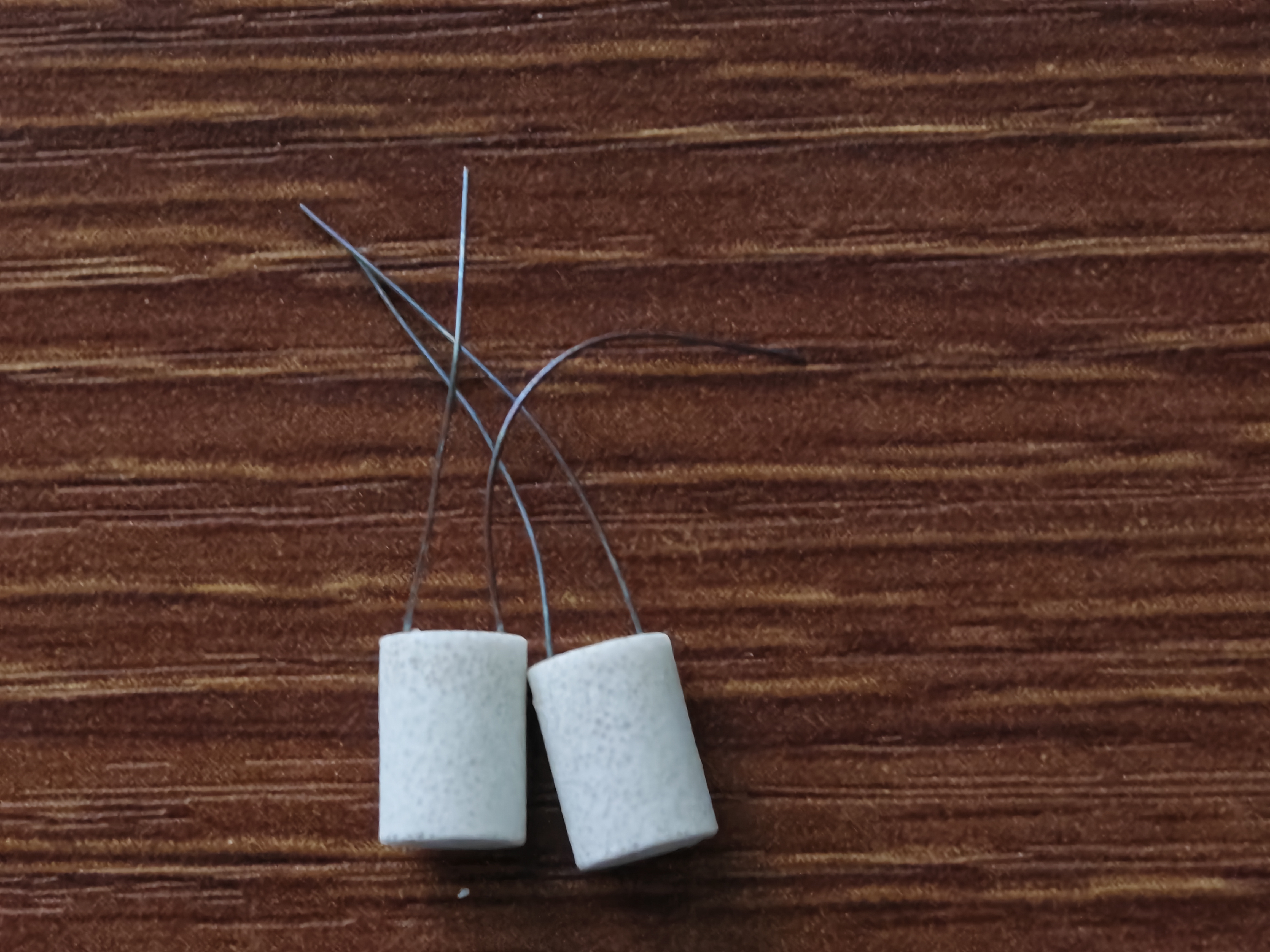

Product Name: Circular MCH Heating Ceramic Pipe Fitting Set - Ceramic - New Material Electric Heating Tube

Ceramic Material: Aluminum oxide: 25%, silicon oxide: 41.6%, strontium carbonate: 1.0%, kaolin: 26.5%, others: 5.9%

Product model: YCB-TC-FR 20260413014

Ceramic plate thickness: 2mm

Burning temperature: 1190 degrees Celsius

Thermal conductivity: 0.3Cal. Cm. S.C

Volume resistivity: 9.513 Ω Cm

Hardness:>1050 HV5

Surface temperature: can reach 80 ℃ -150 ℃ in 20 seconds; It can reach 250 ℃ -400 ℃ in 50 seconds

Lead: 0.5mm alloy nickel wire

Heating material: tungsten

Resistance: 0.8ohm

Packaging size: 1 * 2 * 1.3cm

Total weight: 2 grams

Energy saving:The electric thermal conversion efficiency can reach over 90%,far exceeding traditional resistance
wires and PTC heating elements. Under the same heat generation, the energy consumption is lower, and there is no
waste heat loss during cold start. Long term use has outstanding energy-saving effects and can effectively reduce
equipment operating power consumption.
Uniformity of Heating: Adopting a 360 ° annular hollow cylindrical structure, it achieves uniform heating in the
entire circumferential surface without local hot and cold zones or overheating risks. It can achieve all-round and
blind spot heating of the cavity and internal fluids, with excellent temperature field consistency.
Heating responsiveness: The heating rate is extremely fast,and the rated working temperature can be reached within
seconds of cold start.There is no heating lag problem,and the thermal feedback is sensitive.It can quickly respond
to the rapid heating and constant temperature start stop requirements of the equipment, and is suitable for
high-frequency start stop work scenarios.
Electrical insulation:The alumina ceramic substrate has excellent electrical insulation performance,high insulation
resistance,strong breakdown voltage,and the heating element is completely encapsulated inside the ceramic substrate
, completely eliminating the risk of leakage and ensuring high safety factor during use.
Environmental tolerance: The alumina ceramic matrix has excellent chemical stability, acid and alkali resistance,
corrosion resistance, moisture resistance, and dust resistance. It can work stably in various complex working
environments and has a wide working temperature range.
Impact and Seismic Resistance:Compared to high-purity alumina,alumina ceramics have better toughness and mechanical
impact resistance, are less prone to breakage and deformation, and have outstanding resistance to damage during
transportation, installation, and use. They are suitable for use in bumpy and vibrating conditions.
